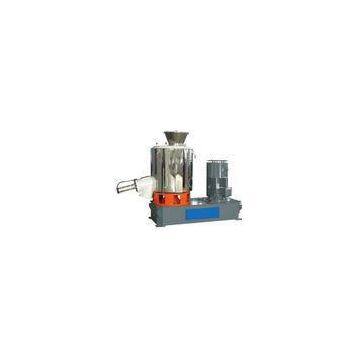

High Speed Industrial Mixing Equipment 500l 55/75kw For PVC , Resins

High?Speed?Industrial?Mixing?Equipment?500l?55/75kw?For?PVC?,?Resins

Descrition:

1. the inside barrel of Heating ＆ Cooling Mixer are made of stainless steel; the outside baiTel of heating Mixer are also in stainless steel, It can resist the corruption of DOP and there is a ￠550mm stainless steel material adding bucket up the pot cover.

2. The Heating? Mixer is equipped with 3-pc – type blades.

3. Electric beating device:equipped with temperature tesing device ＆ warm accuse table.

4. The Main roller is sealed in 88888

5. the digital display (made in Changzhou)

6. Siemens contractor

7. the opening ＆ material unloading of the cover adopts liquid pressure control system.

8. decompression starting device : It will decompress the electirc pressure when we start the machine ,It can protect the electric net.

9. Standard electric box 1 pc; step 1 pc , banisters bandrail 1 unit, air compressor machine 1 pc

Applications:

The mixer mainly used homogeneous mixture with PVC, all kinds of resins and other plastic materials.

It mixes and dyes the grain burden of PE, PP and other plastic materials, to dry the hygroscopicity resin forming the type before processing it.

The mixer is absolutely necessary supplement equipment in the front production line of the plastic production factory

Detailed Appendix:

1/? The motor: 55/75KW,? Dazhong AC motor ;

2/? Total volume is 500L and effective volume is 350L.

The inner barrel of mixer are made ??of stainless steel (thickness of 6mm ) ;

The bottom of the barrel is made of stainless steel (thickness of 8mm) ；

The outermost barrel of heating mixer is packed with 0.8mm stainless steel plate

(DOP corrosion-resistant, easy to clean)；

The mixier is equipped with a stainless steel hopper:150mm*600mm*340mm;

3/ Lid is double sealed,the lid and spout are sealed with silicone sealing strip.

4/? The mixer adopts three stainless steel blades:430/800 RPM,dynamic balance treated.

The blade at bottom is slotted –type；

5/? The mainshaft is sealed by PTFE and skeleton oil(TTO made in Taiwan) ;

Material:45# steel, with quenching and tempering and granding treatment.

6/ Base is made of welded steel,solid and durable.

7/? The belt pulley is made of quality casting iron,mainshaft belt pulley is with balance treatment.

8/? The frame :welded by high-quality iron plate, surface is painted, strong and beautiful;

9/ Deflector is welded in the pot wall,above the blades.

10/? The bearing:ZWZ bearing；

11/? The mode of pot cover opening and discharge : Pneumatic(to imitate Taiwan)；

The discharge hole:￠180mm；

12/? The electrical box:

(1)Standard electrical box；??

(2)Contactor : Delixi Contactor , famous brand in China；

(3)Digital display temperature-control meter ,made in Changzhou；

(4)star-delta starter.

Competitive Advantage:

1. Stable performence
2. Advanced design
3. Convinient control
4.good quality
5.long service life
6.low price
