Electronics Deep Sea Control Panel

Deep Sea Electronics PLC Can connect to ‘Eco friendly’ engine management systems of electronic engines providing engine protection and instrumentation without requiring additional senders.

Comprehensive remote communication via optional RS232 port. Provides RS232 Modem link to PC via either PSTN line or GSM network (using a suitable modem). The module can also signal Engineers via their cell phones using the GSM SMS messaging system to advise of system alarms.

Optional RS485 ‘Modbus’ output. Using industry standard communication protocol allows full system integration into new and existing building management and control schemes. Engine diagnostic information removes the need for both service equipment and cryptic diagnostic lamp (when used in conjunction with electronic engines) .

LCD 4-line text based display to provide ‘a(chǎn)t-a-glance’ diagnosis of fault conditions, instrumentation and operating state. Comprehensive PC configuration and status monitoring using 5xxx PC software.

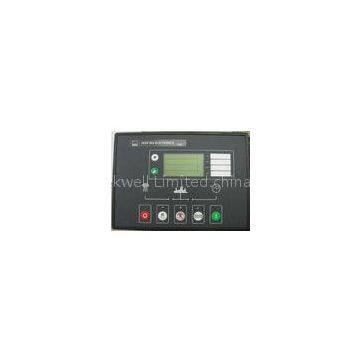

PIN number protected front panel programming of selected trip points and timers, allows field changes to be made to the module settings. The Model DSE5320 is an Automatic Mains Failure Control Module.

The module is used to monitor a mains supply and automatically start a standby generator set. The module also provides indication of operational status and fault conditions, automatically shutting down the genset and indicating failures by means of an LCD display, and appropriate flashing LED on the front panel.

Selected timers and alarms can be altered by the customer from the front panel. Alterations to the system are made using the 810 interface and a PC. This interface also provides real time diagnostic facilities.It is also possible to monitor the operation of the system either locally or remotely.

Dimensions: 240mm x 172mm x 57mm Panel Cutout: 220mm x 160mm ( 8.7” x 6.3”)
