Product Details
| Brand Name | Fuxing | Place of Origin | China | |
| Model Number | LCF-OSF-PH25 |
Product Description
Certification:CE & ROHS

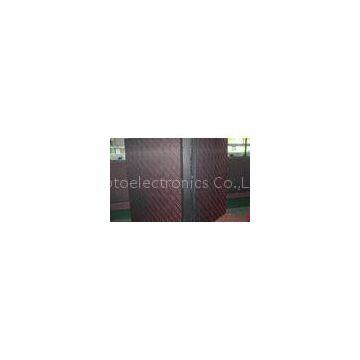

PH25mm 6000nits Outdoor Double Sided LED Display Boards
Applications:
Double-sided LED display, LED display to a small fine for the outdoor way, mainly used in small indoor and outdoor advertising signboards. Such LED displays on the heat, structure, maintenance requirements are unique.
Specifications:
|
ITEM |
p10 |
P12 |
P16 |
P20 |
P25 |
|
Pixel Pitch |
10.mm |
12 mm |
16mm |
20mm |
25mm |
|
Pixel Configuration |
DIP346 1R1G1B |
DIP346 ?1R1G1B |
DIP546/346 1R1G1B/2R1G1B1 |
DIP546/346 1R1G1B/2R1G1B |
DIP546 2R1G1B |
|
Module Resolution |
16 x 16 |
8x 16 |
16x 16 |
16x 16 |
8x 16 |
|
Module Size(mm) |
160*160 |
96*192 |
256*256 |
320*320 |
200*400 |
|
Pixel Density |
10000/㎡ |
6944/㎡ |
3906/㎡ |
2500/㎡ |
1600/㎡ |
|
Scan Mode |
?1/4 |
?1/4 |
static |
static |
static |
|
Gray Level |
16384(14 bits) |
16384(14 bits) |
16384(14 bits) |
16384(14 bits) |
16384(14 bits) |
|
BRIGHTNESS |
>6000nits |
>6000nits |
>6000nits |
>6000nits |
>6000nits |
|
Contrast |
>3000:1 |
>3000:1 |
>3000:1 |
>3000:1 |
>3000:1 |
|
Refresh Rate |
>600Hz |
>1000Hz |
>1000Hz |
>1500Hz |
>1500Hz |
|
Viewing Angle |
160°/140° |
160°/140° |
160°/140° |
160°/140° |
160°/140° |
|
View Distance |
8M-50M |
10M-60M |
12M-60M |
16M-60M |
20M-100M |
Description:
1) Available models: PH10mm, PH12mm, PH16mm, PH20mm, PH25mm, etc
2) It is Totally Waterproof with Double face Front-Opening Design.
3) Remote Control System is a avaliable for our Double Face LED Display
4) Precise structure of the independent design of cabinet, to ensure strict IP65 waterproof rating, ensuring cabinet light is easy to install.
5) Excellent image quality, full pixel color and brightness calibration.
Convenient Transportation (near airport)
