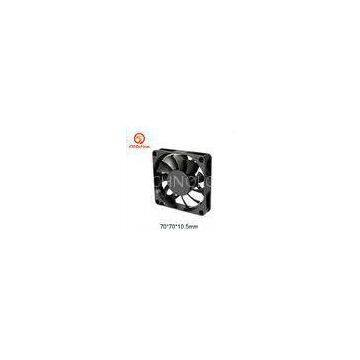

70*70*10mm DC Brushless Fan / Air Purifier Cooling Fan / DC Cooling Fan / VGA Fan
- T/T L/C D/P D/A
- 7 days
You May Like
-
70*70*15mm DC Brushless Fan / Air Purifier Cooling Fan / VGA Cooling Fan
-
70*70*25mm DC Brushless Fan / Air Purifier Cooling Fan / VGA Cooling Fan
-
80*80*10mm DC Brushless Fan / Air Purifier Cooling Fan / VGA Cooling Fan
-
80*80*15mm DC Brushless Fan / Air Purifier Cooling Fan / VGA Cooling Fan
-
80*80*20mm DC Brushless Fan / Rice Cooker Cooling Fan / Air Purifier Cooling Fan
-
80*80*25mm DC Brushless Fan / Air Purifier Cooling Fan / UPS Power Supply Cooling Fan / Case Fan
Product Details
| Brand Name | CoolFlow | Place of Origin | China | |
| Model Number | DF07010 series |
Product Description
Certification:TUV CE RoHS
70*70*10mm DC Brushless Fan / Air purifier Cooling Fan /?DC?Cooling?Fan /?VGA fan
Quick Details
|
Type: |
DC AXIAL FAN |
Electric Current Type: |
DC |
Brand Name: |
CoolFlow |
|
Material: |
PBT plastic |
Place of Origin: |
Guangdong China |
Weight |
35g |
|
Model Number: |
DF07010 series |
Voltage: |
5V,12V,24V |
Air Flow |
13.7~25.45CFM |
|
Size |
70*70*10mm |
Current(A): |
0.08~0.30A |
Noise Level(dBA): |
23.1~35.0dB(A) |
|
Speed: |
2500~4500RPM |
Bearing type: |
Sleeve/2ball/long life |
Certification: |
TUV,CE,ROHS |
Description:
1.Product Name:
DC fan,DC cooling fan,DC brushless fan,DC axial fan,computer fan,cpu fan,case fan,DC blower fan.
2. Life Expectancy:
Dual Ball Bearing: 70000 hours
Single Ball Bearing: 40000 hours
Long life Bearing: 35000 hours
Sleeve Bearing: 25000 hours
3. Standard environmental conditions
Unless otherwise specified,the reference environmental temperature and relative humidity are taken to be 20℃ and 65%.
If there is no provision in the judgment,the environmental temperature and relative humidity range are taken to be 15℃~35℃ and 25%~75%.
4. Operating temperature: -10°C~+70°C/65%(RH)
5. Storage temperature: -40°C~+70°C/65%(RH)
6. Normal temperature rise:
Temp;rise less than 25 °C at external surface.Temp;rise less than 55 °C at coiler surface.
7.Material:
Impeller & Frame: PBT Plastic(UL94V-0)
8.Lead Wire:
UL1061 AWG26# or Equivalent
Red wire: positive(+)
Black wire:Negative(-)
9. Insulation Resistance
Insulation resistance is more than 10MΩ when voltage between housing and both lead wires is 500VDC .
10.Withstand? Voltage:
Must withstand 500VAC 1 second 1mA? between housing and both lead wires.
11.Competitive Advantage:
11-1. We enjoy 10 years experience in manufacturing cooling fan
11-2. We have a comprehensive OEM service
11-3. We fully approved CE,SGS,UL,cUL,TUV certifications
11-4. We have advanced testing instrument and production equipment
11-5. We enjoy convenient access to major transportation networks.
11-6. We specialize in all kinds of Cooling Fans,such as AC/DC fans, CPU coolers,notebook coolers, VGA coolers, Hdd cooler and some accessories : Fan Gard ,Fan Filter and Thermal Grease.
Applications:
Suitable for computer, household appliances, projectors, toys, copiers and other equipment heat dissipation.
Specificatation:
