Product Details
| Brand Name | Greenhealth | Place of Origin | China | |
Product Description
Certification:CE,ROHS
Stainless Steel Walk In Cold Storage Chamber Custom With Big Sliding Door
Greenheath frozen cold storage room adopts environment friendly R404a refrigerant. Capacity can be small to 10cubic meter, big to 1000cubic meter. The temperature can be 0 to 10 °C for chilling storage, or -20°C to frozen storage. The frozen cold room is high quality such as high temperature resistant -60 to +80 celsius. Anti-sun photochemical effect, salt spray test 4days, painted inner interlayer thick 0.5mm, shear stiffness 0.1MPa, inner core materials fire resistance B2. Roof load 1KN/M2 water-proof 0.2Mpa, 10mm/min, 30min, endure. It is fire resistance according to B2 of GB 8624-1997. << buiding materials >> burning relative humidity 5% to 99%. Loading on floor 6KN/m2.
Particular Information:?????????????????????????????????|

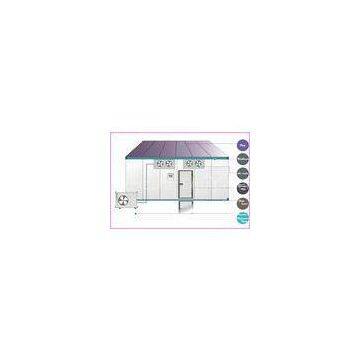

Pictures 105cubic meter |
|
| ? | |
|
Product Name |
?Cold room, vegetables&fruits storage room, meat/butchery freezing room, dairy meat storage cooling room… |
|
Temperature |
?-20 degree |
|
Machine Lord position(optional) |
?Integration refrigerating unit/built in unit or Seperation unit |
|
Cooling style(optional) |
?Air cooling or water cooling |
|
Door frame(optional) |
?double side painting steel, double side stainless steel or double side?aluminum board |
|
Top plank(optional) |
?double side painting steel, double side stainless steel or double side?aluminum board |
|
Wall plank(optional) |
?double side painting steel, double side stainless steel or double side?aluminum board |
|
Door(optional) |
?double side painting steel, double side stainless steel or double side?aluminum board |
|
Cape plank(optional) |
?double side painting steel, double side stainless steel or double side?aluminum board |
|
Boffom frame(optional) |
?double side painting steel, double side stainless steel or double side?aluminum board |
|
Scale board(optional) |
?double side painting steel, double side stainless steel or double side?aluminum board |
|
Product Size |
?6m*7m*2.5m |
|
Product Volume |
?105cubic meter |
|
Unit power/horse number |
?13HP |
|
Body material thickness |
?150mm |
|
Single door size |
?W800mm*H1800mm or big sliding door optional |
|
Cold room with floor panel thickness |
100mm |
|
Compressor |
?Valley wheel compressor |
|
?Use scope |
?Ta restaurant equipment, cake room equipment, coffee shop equipment, bakery equipment, liquor stores equipment, western food shop equipment, Chinese food shop equipment, equipment, condiment processing plant equipment brewery, fruit and vegetable processing plant equipment, frozen foods factory equipment, a meat processing equipment, |
Optional function, Cold store door, air curtain machine, lighting:
??1.1 Sliding door, manual opening and closing.
?1.2 When door is opened, the air curtain machine and lights in cold storage can be running automatically.
Customize ideaDifferent size, different temperature for keeping different goods available to make…Low Running Costs
Details
Quick scan
Condenser unit (America Copeland or Germany BITZER optional)
Fin type evaporate automatic defrost
emboss aluminum sheet on bottom optional
Panel 15
