Product Details
| Brand Name | XinMao | Place of Origin | China | |
| Model Number | DCGF |
Product Description
Certification:CE,ISO9001:2001,BV

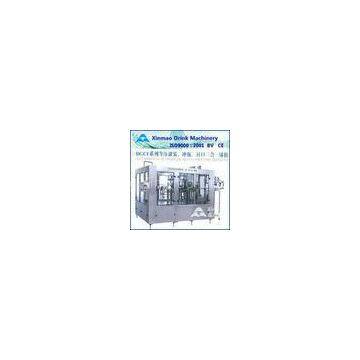

Automatic Beverage Filling Machine , Wine / Beer Bottling Machine 50 Heads
Quick Detail:
PLC/inverse: Japanese Mitsubishi/by order Auto oil adding system Unattached electric control box,convenient and safe With air convey and caps feeding system& return tanks ? Filling temperature: 5degree Bottle volume: 250ml-2500ml Filling capacity: we can offer 2000bph-20,000bph After service: with professional engineer to customer factory to installment and train Material: sus 304/316 Packing: wooden package Filling level: up to customer, 2mm from the bottle neck, whatever Voltage: 380V 50Hz/ by order Power: 5-18KWDescription:
Automatic PET bottle carbonated/ soda/ gas/ soft drink cold filling machine
Carbonated Drink Filling Machine combines rinsing bottles, filling bottles and capping bottles together with PLC control. It is mainly used for plastic bottles with carbonated beverages and non-carbonated beverages.
Features:
1. Air conveyor connected with bottle-in star wheel. Bottles neck holding transferred.
2. Clamp transferring technology varied bottle shapes.
3. With little abrasion, stable transferring, easy to change bottles.
4. With ring type pressure bearing hydraulic cylinder.
5. With high filling speed and exact fluid level.
6. Excellent stainless steel or food level plastic to liquid. Electric system is of international brand and achieves national food sanitary standard.
7. The bottle-out star wheel is of screw down shape. No need to adjust transferring chain\'s height to different bottles.
|
Technical data |
||||
|
Model |
DCGF18186 |
DCGF24248 |
DCGF32328 |
|
|
Number of washing, filling, capping |
18-18-6 |
24-24-8 |
32-32-8 |
|
|
Capacity;bottle(600ml) /hour |
3000-5000 |
6000-7000 |
8000-10000 |
|
|
Suitable bottle size (mm) |
φ=50-108? H=170-340??? 330ml-2.25L |
|||
|
Pressure (kg/cm2) |
2~3 |
|||
|
Power (kw) |
5kw |
?6kw |
?8kw |
|
|
Overall size (mm) (LxWxH) |
2350*1700*2300 |
3200*1900*2300 |
4300*2000*2300 |
|
|
Weight(kg) |
3800 |
5000 |
6000 |
|
|
Technical data |
||||
|
Model |
DCGF404010 |
DCGF505012 |
DCGF606015 |
|
|
Number of washing, filling, capping |
40-40-10 |
50-50-12 |
60-60-15 |
|
|
Capacity;bottle (600ml)/hour |
10000-12000 |
12000-15000 |
15000-18000 |
|
|
Suitable bottle size (mm) |
φ=50-108 H=170-340 330ml-2.25L |
