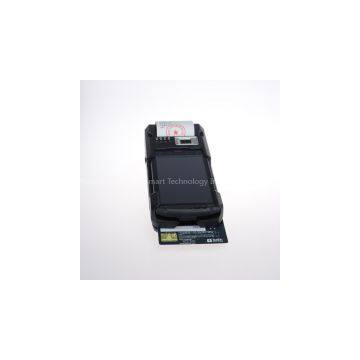

Magnetic Card Reader 3G, WiFi Android POS Terminal with Slot

Magnetic Card Reader 3G, WiFi Android POS Terminal with Slot

We offer full customization based on Android system:

1. Industrial rugged tablet customization;

2. RFID handheld terminals customization;

3. Fingerprint reader and ID card reader customization;

4.Handheld wireless POS terminal customization;

Corewise is the first company develop RFID tablet, we offer customization according to customer's request. Corewise is one of the largest tablet solution provider and is largest Industrial rugged tablet and ODM/OEM service design house. We can offer all customization based on Android system, with industrial specialize use of one-Dimensional, 2-Dimensional barcode, UHF/HF RFID customization.

To visitors:

we are the manufacturer, we can offer the most real products and best service. If you are willing to send email to inquiry me, I thank you very much for your trust.

Special: Waterproof, Shockproof, Dustproof

From the Experts in Rugged: IP65 Certifications.

High performance, low power consumption

Technical Specifications of Nanjing Corewise (CP810)
Physical
Design: Bar phone
Dimensions: 220X92X49(mm)
Weight: 500g
Function Parameters
Display: TFT LCD 5 inch
Touch type: Capacitive type
Display Resolution: 800 X 480
CPU: Qualcomm MSM 8625 Dual Core1.2G
Storage: 4GB NAND Flash ROM+4GB LPDDR RAM

Operating System: Google Android4.0.4
Working: GSM/GPRS/EDGE, Resolution 900/1800MHz
CDMA2000 1X/EV-DO, Resolution 800MHz
Camera: Front 0.3M, Rear 5.0M
WiFi: 802.11b/g Supported
GPS: High precision GPS/A-GPS Supported
1D/1D: Though the camera
Thermal Printer: Built-in thermal printer, Paper width 58mm
Fingerprinter: Capacitive type, <1s
Card Dual: Rail Supported
Contacting IC cardISO 7816-3 and EMV 4.2 standard
Non-Contacting IC cardISO/IEC 14443A, ISO/IEC 14443 B
Other Parameters
SD card: 2 T-Flash, 1GSM SIM
1 CDMA SIM, 2PSAM
USB: 5 Pin Micro 2USB, OTG supported
Mini USB
9V charge port
Motor: Supported
Earphone: Supported
Battery Pack: 6000mAh

Free SDK
L No special training required. Customers can also set up the handheld system in other languages (besides Chinese & English).
L Open API: Free SDK, open software platform for secondary application development and customized
