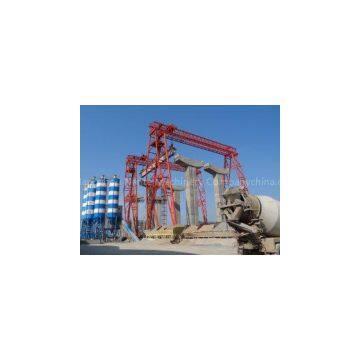

DCS80t-34m/36m Industrial Bridge And Gantry Crane For Mining Maintenance

Brand Name	Shuangpeng		Place of Origin	China
Model Number	DCS80t-34m/36m

Delivery Time:Within 2 months

DCS80t-34m/36m? Industrial Bridge And Gantry Crane For Mining Maintenance

DCS ?Box Type Goliath Gantry Cranes offer an economical solution to bridge cranes when the building is inadequate to support a?overhead?crane or the crane system is to be located outdoors. Truss Girder Gantry?Cranes are a variation from the typical beam or box girder that becomes economical when long crane spans are required. Additionally, many truss girders allow the hoist to be located \"up into\" truss thereby offering much better hook height than a single beam or box girder crane. Also, truss girder cranes are typically more economical than long span beam or box girder cranes. Truss girder cranes offer almost limitless span - but capacity is often restricted with longer spans. Truss girders are also used on outdoor long span cranes in order to reduce effects of wind on the crane drive system.

Gantry/Portal/Goliath cranes with winch trolley are widely used in the following applications:

Precast yards Shipbuilding Container Handling Construction sites Marble / Granite Industry Mining Maintenance Bridge Construction sites Road Construction Sites Stockyards Scrapyards Railway yards

Unique?design features include:

Steel structure part of the gantry crane is welded by U-steel with light weight, low cost and convenient assembly and disassembly. Fast lifting speed and high wind resistance. Many safety devices such as overload limiter, over-height limiter and overspeed switch are added to ensure products’ safe operation. We can design gantry cranes with different specifications to meet different customers’ requirements. Full penetration sub-arc welded top flanges for the ultimate in strength and fatigue resistance. Line bored one piece end carriages to ensure precise alignment and smooth travelling options. High quality enamel paint with optional 2-pak or client specific systems. Oversized motors and controls to allow operation in high wind conditions, sandblast and high performance paint systems, galvanized fasteners, space heaters in motors and controls, hoist covers, motor covers etc. Peace of mind knowing that your crane is designed by qualified engineers and manufactured by qualified boilermakers, electricians and fitters.

General Drawing or Sketch or Draft Drawing

Place of Origin:	Zhejiang, China
Brand Name:	Shuangpeng
Model Number:	DCS80t-34m/36m
Certification:	ISO9001:2008
Max. Lifting Load	80t
Span	34m
Max. Lifting Height	36m
Crane Travelling Speed	6-60m/min
Trolley Travelling Speed	2-30m/min

Technical Parameters

DCS80t-34m/36m Technical Particulars of Gantry Crane
Item	Hoisting device	Item	Traveling device of trolley	Traveling device of crane
Capacity (t)	80	Raveling speed (m/min)	0-10 (Frequency Converter)	0-15 (Frequency Converter)
Working duty	Whole Machine: A4	M4	Working duty	M3
Max Lifting Height(m)	36	?Working wind load (kgf/m2)	≤150
Lifting Speed (m/min)	2
