CNC Precision Automatic Winding Machine Auto Coil Winding Machine
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
AC 220V Automatic Wire Stripping And Cutting Machine , 680mm*580mm*1100mm
-
Round Cable Automatic Stripping Outer Jacket Cutting Cotton Yarn Cable Machine
-
Fully Automatic Wire Cutting and Stripping Machine Cotton Yarn Cutter Unit 220V
-
Electric Wire Cutting and Stripping Machine 16mm to 40mm Cotton Yarn Cutter Unit
-
Custom Cotton Yarn Wire cut and strip machine / Wire Cutter And Stripping Machine
-
Automatic Wire Stripping & Cutting Cotton Yarn Machine SD-A68 for 3-core Cable
Product Details
| Brand Name | senjia | Place of Origin | China | |
Product Description
Certification:CE
CNC Precision Automatic Winding Machine Auto Coil Winding Machine
Description:
The machine can tie and twist the cable automatic.The Head length,Total winding length can be adjusted.
Parameter :
| Model of machine | SD-168B(AC) | Winding speed | 1100-1300pcs/h |
| Total winding machine | 120-220mm | Length of the wire | MAX.4000mm |
| Normal head length | 0-100mm | Nomal tail length | 30-350mm |
| Length of cable tie | can be adjusted | Voltage | AC220V/50Hz |
| Number of turns for tie? | can be adjusted | Pressure of air?source | 0.5-0.8MPa |
| Dimension | 1300mm*660mm*1550mm | Weight | 235KG |
PRE-OPERATION PREPARATION
?
1, Add appropriate lubricating oil to each oil feeding part
?
2, Whether the air pressure exceeds 4.5KG/cm2
3, Whether the wire reel is in proper position
4, after the machine is started, see if the motor or other mechanical components sound abnormally
?
Operation Steps:
1, placement of wire: place the plug end of the wire into the wire reel locating block and press starting switch to enable the wire to be processed in each link by attaching to the winding rod until the wire binding is completed
?
2, adjustment of the wire length: loose the adjusting holder and adjust the wire to the desired length to the left and right, and then tighten the screw
?
3, Adjustment of wire allowance at the other end: loose the air cylinder base to enable the cylinder to stretch out, and then move the air cylinder base to get the desired length of the wire at the other end, and then tighten the screw.

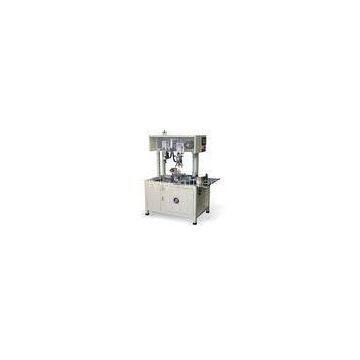

PRODUCT SHOW:
