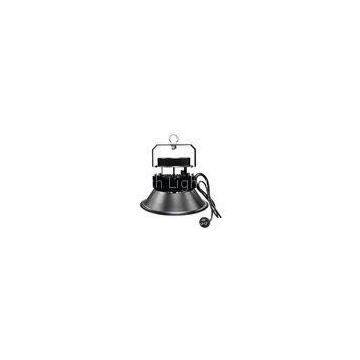

80W 4.2kg 8000Lm Outdoor Waterproof 80pcs SMD LED High Bay Lights Ra 80 , Easy Install

Brand Name	S-Tech, Lightingtalk		Place of Origin	China
Model Number	FLA-SH80W-V10

Delivery Time:7~10 days
Certification:CE/RoHS/C-tick/SAA

80W 4.2kg 8000Lm Outdoor Waterproof 80pcs SMD LED High Bay Lights Ra 80 , Easy Install

Quick Detail:

Model Number: FLA-SH80W-V10 Item Type: LED High Bay Lights LED Light Source: 80pcs SMD 3030 Private mold Micro-groove composite phase (MGCP) cooler +Aluminum heating sink tube+Spherical Glass lens+ private high-strength aluminum reflector Only about 50% weight of normal aluminum heating design Power: 80W±5% Input Voltage: 100~240V AC Lamp Luminous Efficiency: >100 lm/w CRI (Ra>): 80% Color Temperature(CCT): 2700K+5000K Working Temperature(℃): -20℃~40℃ Working Lifetime(Hour): 40000 Certification: CE, RoHS, FCC, C-Tick, SAA, CB Warranty: 5years IP Rating: IP65

Description:

Product: 80W LED SMD High Bay Lights (Spherical Glass lens) Model Number: FLA-SH80W-V10 Lamp Body Material: high quality Aluminum Die Casting + sealed liquid+?Spherical Glass lens, the light transmittance is about 93% ? Light Source: high brightness 80pcs SMD 3030 Input Voltage: 100~240V AC / 50~60 Hz Power: 80W±5% Lamp Luminous Flux(lm): 8000Lm±10% Lamp Luminous Efficiency: >100lm/W CRI (Ra>): >80% Color Temperature: Warm White (2700K), Natural White 4000K), Cool White(5000K) Beam Angle: >120° Working Temperature: -20℃~40℃ Storage Temp. : -40℃~65℃ Lifespan @25℃: 40,000hrs IP Rating: IP65 Certification: CE, RoHS, FCC, C-Tick, SAA, CB Warranty: 5 years N.W.: 4200g

Applications:

Widely used in the lighting of government project, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.

Competitive Advantage:

1) MGCP (Micro-groove composite phase) special liquid cooling technology Japan HITACHI Thermal Conductive PCB, does perfect heat sink for LED chip.

2) Integrated package design, Strong Reflector can be delivered completely.

3) Very simple installation, just need to connect cable to 220V AC power! H05RN-F rubber cable!

4) Rubycon Capacitor, TDK/Yageo MLCC, Yageo Resistance, UTC/Infineon (Germany brand) MOS, Dow Corning glue…, five years warranty!

Special Material:

1. Private mold Micro-groove composite phase (MGCP) cooler +Aluminum heating sink tube

2. Private mold Spherical Glass lens cover +private high-strength aluminum reflector

3. Only about 50% weight of normal aluminum heating design

4. Japan DENKA HITT PLATE or HITACHI Thermal Conductive PCB

5. Electronic materials

1) Electrolytic capacitor- Rubycon (Top Japanese Brand)

2) MLCC- TDK (Taiwan Brand),Yageo (Taiwan Brand)

3) Electric resistance-Yageo (Taiwan Brand)

4) LED- Epistar chip (Taiwan Brand)

5) MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

Driver passes CB, GS, TUV, C-Tick, SAA, CE certification

Protection:

1) Output over voltage protection, it can be normal lighting 80~265V AC. Or will be flicker or no lighting. But no damage if >265V AC.

2) Module type power supply design. One module is for 50W LED lamp! For example 200W asks 4 modules, if one module is defective, the lamp has 75% brightness!

3) Output short-circuits protection, return to operating condition within 6 seconds.

High bay light, LED high bay light; Tempered glass LED high bay, Liquid Cooling LED high bay

Specification:

Rated Voltage (VAC/Hz)	100~240VAC / 50~60 Hz
Power Factor (PF)	>0.95
Beam Angle (D40)	120°
Lifespan (hrs) @25℃	40,000hrs *
Ambient Temp. (℃)	-20℃~40℃
Storage Temp. (℃)	-40℃~65℃
Key Material	MGCP tech aluminum + Glass lens
CCT(K)	2700K*/4000K*/5000K*

ERP NO.

Item (no)

Wattage (W)

CCT
