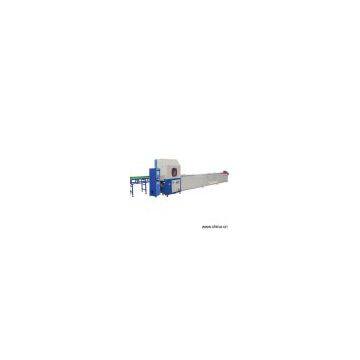

Sell CNC Vertical Cutting Center

Model No.:HYLJKL02-120
Product Origin:China
Brand Name:HUAYA
Price Terms:
Payment Terms:
Certification:
Description:Features: 1) This machine is used for cutting aluminum profiles or glass fiber reinforced plastic profiles. It can complete ±45° and 90° angles cutting 2) High precision: a) Three fixed saw blades b) Cuts 45° and 90° angles, which need not be adjusted and has no adjustment error c) Air-liquid converter driven device avoids crawling of air cylinder drive and assures stable running 3) High efficiency: a) Computer controlled system b) Servo system drives automatic feeding, cutting and unloading 4) High security: a) Cutting section is a fully closed structure for safe and stable operation b) Computer optimized process system 5) Special mechanical device can achieve optimum cuts, have zero stub bar cutting, and save 20% - 30% profiles compared with double miter saws 6) Automatic feeding and unloading system can save 50% - 70% manual work compared with double miter saws 7) Servo motor, spindle drive motor and main electrical parts adapt to Japanese, German and Italian brands 8) Power supply: 380V / 50Hz 9) Air pressure: 0.4 - 0.8MPa 10) Air consumption: 200L/min 11) Input power: 5.25kW 12) Feeding speed: max. 70m/min 13) Max. cutting height: 120mm 14) Max. cutting width: 120mm 15) Saw blade diameter: 450mm 16) Overall dimensions: 11,000 x 1,420 x 2,000mm
