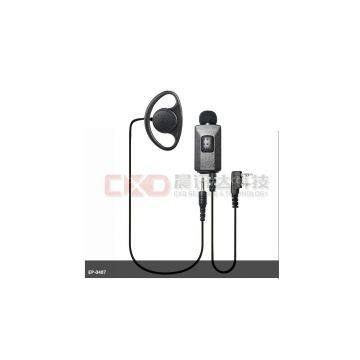

Two Way Radio Earphone Quick Disconnect Series (EP-0407C)

Product Description

Two Way Radio Earphone Quick Disconnect Series EP-0407C
Different interchangeable ear options
Rugged Kevlar reinforced coil cable
The cost effective accessory solution
Light and compact, clear sound;
Product easy to wear, high fidelity;
Different types of headphones can change the type
Ear hook soft, non-toxic, PRO-and skin;
Two-piece, sideways PTT design, more beautiful
Product wear comfortable, solid, easy to fall off, do not block hearing;
High quality, strong, environmentally friendly PU wire, strong and durable;
For patrol, security, security, protocol, service, service, scheduling people;
We can market the need for different brands and models of radio configuration.

Technical Specifications
Speaker
Dimensions (mm): 14.8*5.8H 14.8 * 5.8H
Sensitivity: 114± 3 dB 114 ± 3 dB
Impedance: 32 Ω 32 Ω
Rated input power: 10mW 10mW
Maximum output power: 20mW 20mW

Microphone
Dimensions (mm): 6.0× 2.7mm 6.0 × 2.7mm
Sensitivity: -42± 3dB -42 ± 3dB
Frequency: 20-20kHz 20-20kHz
Impedance: 2.2kΩ At1kHz 2.0V 2.2kΩ At1kHz 2.0V
Operating voltage: 1-10V 1-10V
Type: Omni

PTT PTT
Dimensions (mm) 6*6*3.7 6 * 6 * 3.7
Wire
Dimensions (mm) L=850 L = 850
Refractoriness: -40 ~ 105 ° C -40 ~ 105 ° C
Material: PU

For:
Motorola:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, GP300, GP600, GP88, GTX, GTX800, GTX900, P110, P1225, P1225LS, P1325, P225, SP1225, TALKABOUT, T280, TA2280, TA280, TA289, VISAR, I305, GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, EX500, EX560, EX600, GL2000, GP328PLUS, GP338PLUS, PTX700PLUS, PTX760PLUS, GP628, GP644, HT1000, GP1200, GP2010, GP2013, GP900, HT1100, HT6000, JT100, JT1000, MOBIUS, MT2000, MT2100, MTS1200, MTS2000, MTX8000, MTX838, MTX868, MTX9000, MTZ2000, MTP850, MTP800, MTH650, HTH800, MOTOTRBO, XPR6300, XIRP8200, XIRP8208, XIRP8260, XIRP8268, XPR6350, XPR6500, XPR6550, XPR6580, XBR6300. XBR6350, XBR6500, XBR6550, XBR6580, DP3400, DP3600, DGP4150, DGP6150, GTP800, APX7000
Kenwood:
TK208, TK308, TK2102, TK2107, TK238, TK3102, TK3107, TK338, TK2100, TK2100K2, TK260, TK260G, TK261, TK270, TK272, TK272G, TK278, TK3100, TK3100K2, TK3101, TK360, TK360G, TK370, TK370G, TK372, TK372G, TK373G, TK378, TK259, TK355, TK359, TK250, TK250G, TK250N, TK350, TK350G, TK350N, TK353, TK353N, TK430, TK431, TK2140, TK2160, TK2170, TK2360, TK3140, TK3148, TK3160, TK3170, TK3173, TK3360, TK2212, TK2300, TK2302, TK3212, TK3300, TK3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207, TK3302U, TK4100, TK490, TK180, TK190, TK280, TK290, TK380, TK390, TK480, TK481, TK5400, TK3130, TK3131, NX200, NX300, TK-208, TK-308, TK-2102, TK-2107, TK-238, TK-3102, TK-3107, TK-338, TK-2100, TK-2100K2, TK-260, TK-260G, TK-261, TK-270, TK-272, TK-272G, TK-278, TK-3100, TK-3100K2, TK-3101, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-372G, TK-373G, TK-378, TK-259, TK-355, TK-359, TK-250, TK-250G, TK-250N, TK-350, TK-350G, TK-350N, TK-353, TK-353N, TK-430, TK-431, TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3148, TK-3160, TK-3170, TK-3173, TK-3360, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK-2200, TK-2200L, TK-2200P, TK-2202, TK-2202L, TK-2207, TK-3200, TK-3200LP, TK-3200P, TK-3201, TK-3202, TK-3207, TK-3302U, TK-4100, TK-490, TK-180, TK-190, TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-5400, TK-3130, TK-3131, NX-200, NX-300
