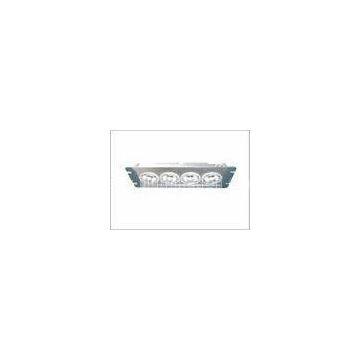

IP65 Explosion Proof Emergency Light / 4 * 3w Led Emergency Dome Lights

Brand Name	CXS		Place of Origin	China
Model Number	CNFE9121/ON

Certification:MA, ISO9001

IP65 Explosion Proof Emergency Light / 4*3w Led Emergency Dome Lights

Quick Detail:

Place of Origin: Zhejiang, China (Mainland) Brand

Number:CNFE9121/ON

Light Source:LED

Watt: 4*3W

Material: aluminum alloy

Payment Terms:T/T,L/C

Certificate:ISO9001

Applications:

Suitable for switching stations,power distribution room,open and close reach of the substation switch room,capacitors room,the office buildings and other indoor places industry emergency lighting.

Features:

With functions of automatic emergency power,the electric supply? switch to emergency time within 0.5.Emergency state is the constant current source output, constant illumination Normal mode conversion into emergency mode voltage range is 132V~187V.Meet the requirements of GB7000.2 emergency lighting lamps, has the good electromagnetic compatibility Lamp life up to 100000 hours,battery life up to 1000 cycles,shell protection grade IP65,corrosion level F2 Integrated structure design, easy installation with rotatable mounting bracket, projection angle can be adjustable. With A/B, T1 / T2? four different combinations selection

Usage

Open the lamps cover with wiring hole , lead in the 8mm~14mm three core cable to lamps, tighten the compression nut to ensure the cable is sealed,then connect the? three mass-terminated connectors of cable withthe corresponding connectors,directly connect the power or connect an extension cord,then power on can realize lighting.Turn off the power,according to the site lighting needs to determine how and where to install lighting,with the M4~M5 screw and washer will be fixed lighting installation.

Notes:

Lamp housing and the transparent parts to keep the surface clean to ensure good transmission performance.Avoid touching hard objects light transparent surface to avoid scratching.Installation and maintenance of lamps.You must first disconnect the power.None-professionals are not free to remove lamps

Distribution Curve

Characteristics

NO.	Light Source	Rated Power(W)
CNFE9121/ON	LED	4*3W
Rated voltage:	AC/DC12-48V? 50HZ
AC/DC85-260V 50HZ
Enclosure:	IP65
Protection Category:	WF2
Dimensions:	350*135*90mm
Total Weight:	1.4kg

Product Dimensions and Installation
