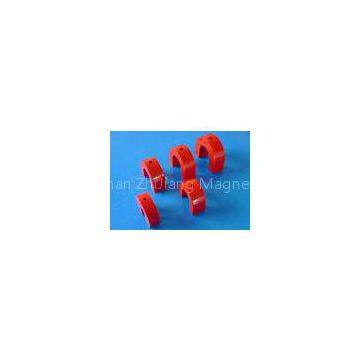

Powerful Alnico Horseshoe Magnet , Horseshoe shapes red painted
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Magnetic Arc Electric Motor Magnets , Permanent Magnet
-
Permanent Electric Motor Magnets , Neodymium Iron Boron Magnets
-
Alnico Ring Electric Motor Magnets , Arc Ring Magnet for DC Motors
-
Radial-orientated DC Electric Motor Magnets With Shiny Surface
-
Permanent Alnico 5 Educational Magnets , Cast Alnico Magnet
-
Casting Alnico 3 Educational Magnets , U-Shape Teaching Aids
Product Details
| Brand Name | ZJMAG | Place of Origin | China | |
Product Description
Certification:ISO 9001: 2008
? Powerful Alnico Horseshoe Magnet , Horseshoe shapes red painted
Quick Detail:
1. Density - 7.3 g/cm3
2. Manufacturing process - casting (most common)
3.Horseshoe shapes red painted
4. Saturation magnetizing field required - about 5kOe.
Cast Alnico magnet is composed primarily of Aluminum, Nickel, Cobalt, Copper and Iron. It has very good corrosion resistance and high temperature operation.
Although other magnetic materials offer greater energy and coercivity values, the high remanence and thermal stability of AlNiCo makes it the most effective magnetic material for certain applications, like generator, microphone, lifting, voltmeter and measuring instruments. It is widely applied in high stability fields like aerospace, military, automobile and security systems.
Specifications
|
Part No. |
Width (MM) |
Heigth(MM) |
Thk (MM) |
Poles (MM) |
Lifting (kgs) |
|
H101 |
22.2 |
25.4 |
8.2 |
7.75 |
2.4 |
|
H102 |
23.1 |
25.0 |
6.5 |
8.30 |
1.8 |
|
H103 |
27.0 |
35.0 |
15.9 |
9.55 |
4.0 |
|
H104 |
41.3 |
39.7 |
15.9 |
15.9 |
6.8 |
|
Part No. |
Width (MM) |
Heigth(MM) |
Thk (MM) |
Hole(MM) |
Lifting (kgs) |
|
H201 |
28.0 |
25.0 |
8.0 |
/ |
1.2 |
|
H202 |
50.0 |
60.0 |
10.0 |
6.5 |
5.0 |
|
H203 |
56.0 |
46.0 |
25.0 |
5.5 |
14.8 |
|
H204 |
62.0 |
51.0 |
24.0 |
7.0 |
17.0 |
|
H205 |
86.0 |
70.0 |
45.0 |
9.5 |
35.0 |
|
Part No. |
Width (MM) |
Heigth(MM) |
Thk (MM) |
Hole(MM) |
Lifting (kgs) |
|
H301 |
22.0 |
17.0 |
25.0 |
7.0 |
4.5 |
|
H302 |
30.0 |
20.0 |
20.0 |
4.0 |
5.0 |
|
H303 |
