Home > Products > Optical Fiber Pigtail > SC MM Fiber Optic Pigtails with Standard Exact Plastic , Low Insterion Loss and High Return Loss

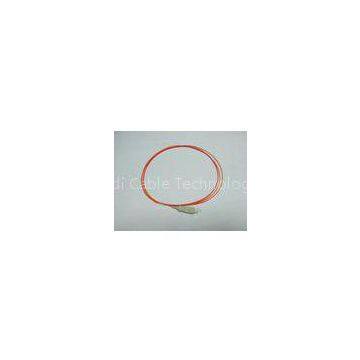

SC MM Fiber Optic Pigtails with Standard Exact Plastic , Low Insterion Loss and High Return Loss
- T/T L/C D/P D/A
- 7 days
You May Like
-
SC MM Fiber Optic Pigtails with Standard Exact Plastic for Industrial / Medical and Military
-
LC SM 3.0mm Fiber Optic Pigtails Patch Cord , E2000 / MPO Connector
-
SM 9 / 125 Fiber Optic Pigtails , E2000 / MTRJ / D4 / SMA for Optical CATV & LAN
-
SC SM White Fiber Optic Pigtails Optional , Heat Shrinkable Tube , RJ-45 lockable Structure
-
FC APC Fiber Optic Pigtails Fiber Optic Pigtails , DX / SX 62.5 / 125
-
FC APC Fiber Optic Pigtails , Low Insertion Loss and High Return Loss
Product Details
| Brand Name | NHC | Place of Origin | China | |
Product Description
Certification:ISO
SC MM Fiber Optic Pigtails with Standard Exact Plastic , Low Insterion Loss and High Return Loss
Quick Detail:
Connector?type:FC,?SC,?LC,?ST,?MTRJ,?MU,?E2000,?MPO,?DIN,?D4?and?SMA Cable?type: DX/SX,PVC,LSZH,OM3,OM4,OFNR,OFNP Mode: SM:9/125,MM:50/125,62.5/125 Material:?standard?exact?plastic Small,?light,?high?dense?connection Push-pull?RJ-45?lockable?structure Good?in?repeatability Good?in?exchangeSpecifications:
|
Item |
Vaule |
|
Ferrule?end-face |
PC,UPC,APC |
|
Connector?type |
FC,?SC,?LC,?ST,?MTRJ,?MU,?E2000,?MPO,?DIN,?D4?and?SMA |
|
Cable?type |
DX/SX,PVC,LSZH,OM3,OM4,OFNR,OFNP |
|
Mode? |
SM:9/125,MM:50/125,62.5/125 |
|
Cable?diameter |
0.9mm,2.0mm,3.0mm |
|
Insertion?loss |
≤0.2?and?≤0.3dB |
|
Return?loss |
≥50?and?≥65dB |
|
Exchangeability |
≤0.2dB |
|
Vibration |
≤0.2dB |
|
Operating?temperature |
-40?to?75°C |
|
Storage?temperature |
-45?to?85°C |
|
Cable?length |
1,2,3m?and?5m?or?customized |
|
Operating?wavelength |
1,310?and?1,510nm |
Applications:
Videos?
Active?device?termination?
Premise?installations?
Telecommunication?networks?
Local?area?networks?(LANs)?
Data?processing?networks?
Wide?area?networks?(WANs)?
Industrial,?medical?and?military
