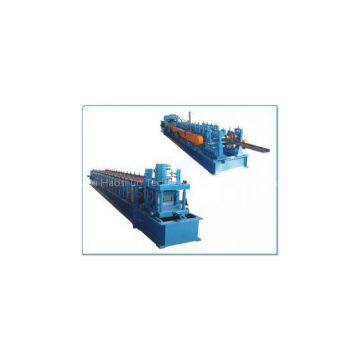

C / Z / U Section Roll Forming Machine for Purlin Profiles

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HS		Place of Origin	China
Model Number	custom made

Delivery Time:about 40 days
Certification:ISO9001, CE

We produce series of Roll Forming Machine for kinds of steel sections like C, Z, U, P purlins, door frame, light keel, etc.

Machine Features:

1) Material spec: colored and galvanized steel coil

2) Thickness of coil sheet: 0.45 - 1.5 mm or 1.5-3mm or more

3) Coil width: according to profile sizes

4) Working speed: 5 - 15m/min

5) Power requirement:
????? a) Main motor power: 5.5-18.5KW
????? b) Hydraulic station power: 5.5-7.5KW

6) Uncoiler max. capacity: 5000kg

7) Forming stands: design as per the profile drawing

8) Controlling system: PLC, touch screen operation

9) Type of cutting: roll-formed and length-set cutting

10) Machine dimension: about 18, 500 x 1, 500 x 1, 400mm

11) Total weight: about 9500kg

12) Voltage: 380V 3 phase 50Hz or at buyer\'s requirement

Working Flow

decoiling - sheet guiding? - roll forming - measure length - cutting - run-out

Machine Components

Uncoiler, roll forming machine, cutting device, hydraulic system, control cabinet, etc
