Jack-up Working Over Platform for Working Depht 25m

Place of Origin	China

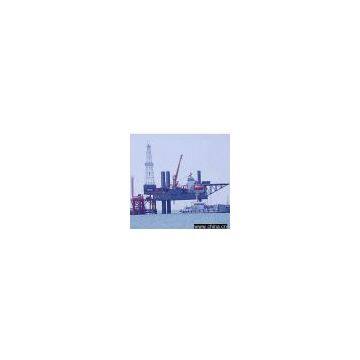

Jack-up Working Over Platform for Working Depht 25m Introduction This platform is a steel non-propelled cantilevered three-leg self-elevating workingover platform. Flat shape of the main hull is like triangle. Equipped with columnarlegs, an electric rack and pinion jacking system and a helideck. This platformis suit for working over oil and water wells which are in argillo-arenaceoussubmarine offshore area or the similar offshore area. Principal Parameters 1: Total Length x Total Width: 63.3m x 36.6m;2: Hull: Length x Width x Depth: 43m x 36m x 4.5m;3: Leg: length x Diameter: 60m x ?.0m;4: Cantilever (Length x Width x Depth): 24m x 0.7m x 4m;5: Derrick Movement: Transversely?.5m; Longitudinally?0m;6: Working Over Capacity: 5500m(27/8in); 5500m(27/8inDP); Electric Workover Rig7: Lifting Capacity: 2 x 16t x 25m 8: Jacking Capacity: 1200t x 3;9: Working Depth: 4.5m~25m;10: High Loading Draft: 11: Operating Environmental Temperature: -10oC ~ +40oC;12: Fixed Number of Persons: 90;13: Self-sustaining Capacity: 20;14: Service Life-span: 20; producing area:China
