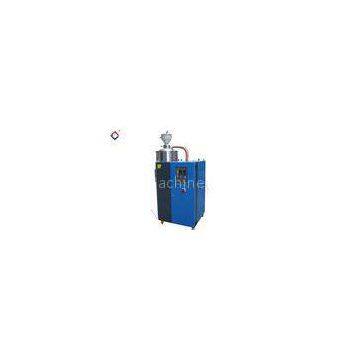

Blue Stainless Steel Hopper Multi Function dehumidifier dryer Machine

Blue Stainless Steel Hopper Multi Function dehumidifier dryer Machine

Quick Detail:

1. Three?in?one dehumidified?dryer

2.?Suitable?for?all?kinds?of?plastic?material

3.?Small?body&?full?function

4. P . I . D controller

Description:

160KG Stainless Steel Hopper Multi Function Machine

1,This model ?is suitable for engineering plastic material such as PA, PC, PBT and PET .
2,This model combines dehumidifier insulated drying hopper and two station loaders for a compact design.

3,Installed during hopper to avoid energy consumption, dried air down blow design.

4,Compact in size for easy moving and saving space.

5,Close loop conveying system for dried material to avoid reabsorption.

6,Pneumatic material discharge gate for easy material change.

Competitive Advantage:

Our products with reliable security protection devices,include:

1. Out of phase protection

2. Reverse phase protection

3. Over tension protection

4. Over heating protection

5. Over loading protection

6. Lack of water protection

Features

Dehumidifying ,drying and feeding unit equipped honeycomb dehumidifier;

Used for high hygroscopic engineering plastic and rubber such as PA,PC,PBT,PET,etc. H4 or H5 type of can be selected, according customers’ demand;

Integrates dehumidifying , drying and two step feeding function; also can be customize three step feeding

The dew-point monitor indicator for customer selection , which can monitor the dew-point;

The moisture proof drying material tube adopt bottom blowing design with circling air exhausting device , prevent heat energy emitting, heat preservation,improve drying effect;

Compact in size for easy moving and the machine can be replace easily;

Airtight loop feeding system , prevent the dried raw material to be damp again by contact external air;

With built in restrictive valve , guarantee no remained material in pipe;

Use two cooler in dehumidifying system , guarantee low temperature on air and dew point.

Specifications:

Working Principle:

Dehumidifying system:

damp and hot air from dry material barrel is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then adsorbed by regeneration heating air.Two strands of airflow function on the rotor. And with the rotation, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dried to the drying temperature and then is blown into material barrel to closed circle to dry material.

Schematic:
