Low power consumption 300 Led Traffic Signals China Suppliers

1.Product Summary:?

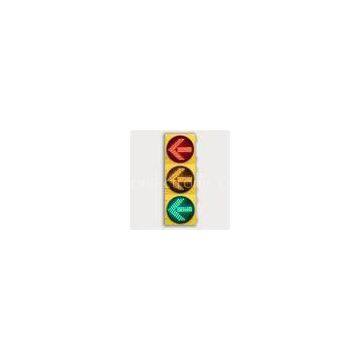

FX300-3-3B/K Traffic Signal Head use LEDS as light source, which is a today’s fashion arrow light .It is made up of three? color arrow lights with cast aluminium housing, Diameter of optical unit is Φ300mm.

Feature:?

This product is with unique design with honeycomb optical system .It is characterized with wide view angle, uniform brightness standard chromaticity,? lower power consumption, long lift time.These advantages really outstand especially during the burning sun and smog weather.

2.Range of application:?

This light is applied for all necessary arrow traffic road junctions.

3.Product parameter:

Description?

Model?

Drawing Number

Dimension

Housing Material

Housing Color

300 arrow light

FX300-3-3B?

FX300-3B/K.00.00.00

1330 X 580 X 492mm

cast

aluminium

black

Color

Size of Emitting Surface

Lens Feature

LEDS

LED Number

Central Light Intensity

Optical Feature

Voltage

Rated Power

Standard

red

Φ300mm

Flat lens with scaly pattern

Φ5(0.06W)

66pcs

>380cd

honeycomb lens

arrow mask

AC176

~

264V

≤15W

GB14887

-2003

yellow

Φ300mm

Φ5(0.06W)

66pcs

>380cd

≤15W

green

Φ300mm

Φ5(0.06W)

53pcs

>360cd

≤15W
