0.4mm - 0.6mm Roofing Tile Making Machinery PPGI Steel Coil Forming Line

Roofing Glazed Tile Roll Forming Machine

Description:

1. Dimensions:8500mm*1600mm*1300mm

2. Forming speed: about 20m/min

3. Raw Material Steel Coil: PPGI ,G350

4. Line speed:5--6m/min

5. Thickness of formed steel: about 0.4mm-0.6mm

6. The coil input width: 1250mm

7. Step distance:300--380mm? mould depth:25mm

8. Forming stations: 18 stations(1 feeding rolls for plastic film covering unit)

9.? Main machine motor power: 7.5KW made in China

10. Material of the shaft: 45# forge steel , machined with numerical control, polished and coated with chrome,

surface with 0.05mm

11. Diameter of shaft: ￠70mm

12. Way of drive:1\"chain

13. Hydraulic power:7.5KW

14. Computer adopt PLC, Siemens or Panasonic made in Japan

15. Computer operating board: LCD touch screen

16. Length tolerance: 3m±1.5mm

17. Hydraulic pressure:16Mpa

18. Material of blade: Cr12 ,quenched 58-62

19. Pressing mold:press after forming,Cr12 material

Applications:

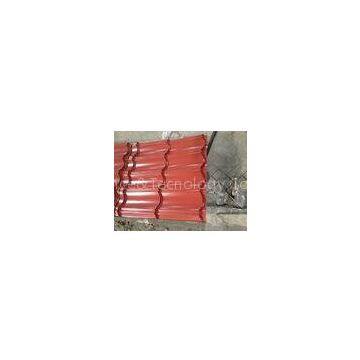

Roof panels,Roofing Tiles

Step roofing panels

Specifications:

Drawing:

Main Technical specifications:

Flowchart:

5 hydraulic decoiler --- Guiding --- Film covering --- Roll forming machine -- pressing ---- hydraulic cutting --- Output tables

Competitive Advantage:

1:? We are a professional manufacturer of designing,producing the glazed tile forming machine

2:? With top quality and reasonable price we build a long term business relations with some overseas companies
