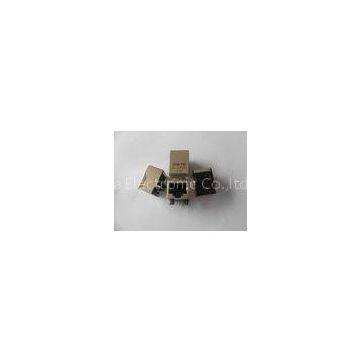

1x1 Tab Down Integrated RJ45 filter without led for 10/100BASE-TX, RJ45 with Transformer

Brand Name	DGKYD		Place of Origin	China
Model Number	KRJ-13PBNL

Delivery Time:Lead-time 5-10 days
Certification:SGS、UL、

1x1 Tab Down Integrated RJ45 filter without led for 10/100BASE-TX, RJ45 with Transformer

10/100BASE?1x1?Tab?Down?Transformer?RJ45 without LED and EMI ( Cylindrical pin ) KRJ-13PBNL

Product Number:KRJ-13PBNL

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.?

Descriptions:

10/100Base-Tx RJ45 single port 1X1 Vertical without LED with top entry Single port 1X1 Tab-Down RJ45 with internal magnetics ???????????? Internal magnetics are 100% electrically tested for HI-POT and functionality Suitable for CAT5&6 fast Ethernet Cable or better UTP 350uHminimum OCL with 8mA bias current High performance for maximum EMI suppression Minimum 1500Vrms isolation per IEEE 802.3 requirement ?ROHS-6 peak wave solder temperature rating 260℃ Operating temperarure range :0℃ to +70℃ Storage temperature range :-40℃ to +85℃ Number of positions:8 Number of contacts loaded:8 Shieded:YES Rohs compliant Length:21.3mm LED:NO EMI fingers:NO Usage:LU1S041-LF/KRJ-13PBNL

Mechanical Dimension:(UNIT:mm)

. XX Tolerance:0.25

.XXX Tolerance:0.13

Material specifications:

Plastic core: PA66 Black(UL94V-0) Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl Housing:Phenolic, PA66 Black (UL94V-0) Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications:? at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

??????????? 30-60MHZ -14.0dBmin

??????????? 60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

???????? 30-60MHZ -35.0dBmin

???????? 60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH? @100KHZ 100Mv 8mA?? DC

Schematic:

Applications:

? Integrated RJ45 connector main used to :

? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

For example:

Competitive?Advantage:

Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?customer?firstly?,

100%?test,?0?defect,?short?lead?time?are?our?best?advantages
