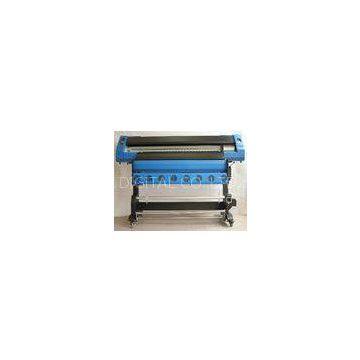

Automatic Epson DX7 Eco Solvent Printer For Digital Inkjet Printing

Type: inkjet printer

Brand Name: A-Starjet

Place of Origin: Changzhou

Automatic Grade: Automatic

Usage: digital vinyl printer

Certification: CE

Voltage: AC 100-220V

Model: 7702

Weight: 360 kgs

Color: CMY / CMYK

Keyword: eco-solvent printer

After-sales Service: Yes

Item

A- Starjet 7702

Print head

two DX7 print head

Number of nozzles

1440 nozzles per head

Color

4 Colors:Cyan,Magenta,Yellow,Black

Resolution

1440dpi(max)

Height of print head

2～5mm

Size of ink droplet

1.5～21pl

Printing width

1800mm

Speed

3pass:? 34.5sq.m per hour

4pass:? 26.5sq.m per hour

6pass:? 17.0sq.m per hour

8pass:? 13.0sq.m per hour

Media width

1900mm

Media take up

Yes

Media feeder

Option

Media payload

70kgs

Heating system

Print heater and Post heater with PID temperature control temperature range:room temperature to 80℃

Ink

T5.5 eco-solvent ink

ST5.5 water-based dye ink

T7 reactive printing ink

Ink cartridge

8×350ML continuous ink supply, Optional bulk system

Rip software

iPrint3.0

Control software

Print console

Operation system

MS Windows XP ﹠ Windows 7

Interface

USB2.0

Power voltage

AC 220～240V 50～60Hz or AC 110～120V 50～60Hz

Printing environment

Temperature:20～25℃,humidity:40-60%

Printer dimension

W2840×D900×H1250mm

Packing dimension

W2920×D980×H700mm

Net weight

220kgs

Gross weight

300kgs
