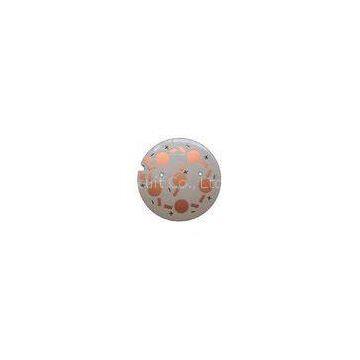

Single Sided Aluminium PCB Board with AL1050 / AL 5052 / AL 6061 Base

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AGILECIRCUIT		Place of Origin	China
Model Number	Ledalpcbboard5050

Product Description

Delivery Time:1 week - 2 weeks
Certification:ISO9001,UL, RoHs, TS16949

Single Sided Aluminum PCB Board with AL1050 , AL 5052 , AL 6061 Base Material

Product Name:	Single Sided Aluminum PCB Board	Material:	AL1050, AL5052, AL6061
Layer Count:	1 Layers	Board Thickness:	1.5mm
Thermal Conductivity	2.0 w/mk	Surface Finish:	Immersion Gold
Copper Thickness	?1oz	Applications:	LED Lights

About Agile Circuit

Based in China, Agile Circuit is specializes in printed circuits manufacturing with high quality and low cost by prototypes and low volume. Our products range includes FR4 rigid printed circuits, PCB aluminium, copper printed circuits and PCB assembly which are extensively used in communications, network, industrial control, computer applications, national defense, aerospace and medical fields.

Our? Advantage:

On Spec, on Time, on Budget Fast Quotation, cost aggressive 24 hour prompt response Flexible tackle and quick operation on urgent issue High & advanced production capabilities ISO/TS approved facilities Technical and professional support Integrated supply service, one stop PCB solution Diversified Payment way available

Specification:

Maximum Board Size	23”x28”
Board Thickness	0.4-4.0mm
Minimum Conductor Width	0.10mm
Minimum Conductor Space	0.10mm
Minimum Hole Size	0.20mm
PTH Wall Thickness	>0.025mm
PTH Hole Diameter Tolerance	±0.05mm
Non PTH Hole Diameter Tolerance	±0.05mm
Hole Position Deviation	±0.076mm
Soldemask Layer Min.Bridge width	5mil
Soldemask film Min.Thickness	10mil
Insulation Resistance	1012Ω Normal
Peel-off Strength	1.4N/mm
Soldemask Abrasion	>5H
Soldexability Test	260℃20 second
E-test Voltage	50-250V
Permitivity	ε=2.1~10.0
Volume resistance	1014Ω-m,ASTM D257,IEC60093

Applications:

Light emitting diodes (LED) is an important application of Aluminum MCPCB board because its excellent performance in heat dissipation, thermal expansion and illumination production. Below are some applications of aluminum metal core LED PCB:

Streetlights, Indoor and outdoor lighting Back light unit Power converters: telecom, industrial, high voltage regulator, power supplies Automotive LED Advertising and Billboards ? Photovoltaic applications Hospital and Healthcare ? ? ? ? ? ? ? ? ? ? ? Covered Parking Structures Tunnels and High bay ? ? ? Retial & Shopping Cernters? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Petroleum and Gas Stations ? ? ? ? Mining Schools and educations Restaurants and Flood Lighting??

Description:

Aluminium PCB board (also aluminum PC
