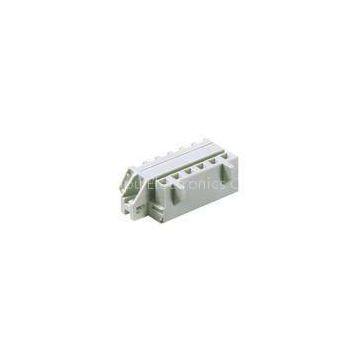

Angled Female 6P16A 15A MCS Connector With Finxing Flanges Light-Grey
- T/T L/C D/P D/A
- 7 days
You May Like
-
Angled Female 16A 15A MCS Connector With Snap-in Mounting Feet
-
PCB 12A 15A MCS Connector With Spring Cage Clamp PA66 Insulation Material
-
Female 400V 16A 24 - 14AWG MCS Connector With Pitch 7.5mm SP475 SP478
-
24 - 14AWG Right Angle Pin MCS Connector , 2 - 24 Poles
-
3.5mm Pitch Male MCS Connector With Spring Cage Clamp SP435 SP438 Series
-
250V 300V 10A Right Angle Pin MCS Connector , 3.81mm Pitch Orange
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | 50 PCS |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
Angled Female 6P16A 15A MCS Connector With Finxing Flanges Light-Grey
Quick details
2-24 Female Connectors With Finxing Flanges
Pitch 5.0mm/0.197in
300V 16A 15A
0.2-2.5mm2/24-12AWG?
2-24 Available Poles
Order No.:450656/010(Light-Grey)
◆?As PCB Connectors,
◆As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks.
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCBs, heat pump controller,the door control of a lightrail
|
Article: |
2-24 Female Connectors With Finxing Flanges |
|||
|
Pitch: |
5.0mm/0.197in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
300V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-12AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4.0KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Light-Gray |
|||
|
Packing: |
100PCS |
| Attachment | Name | Order NO. |
| ?22 | ?222 | ?22 |
