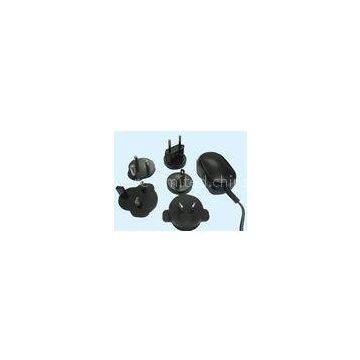

800mA 6vdc Multi Plug AC Adapter For Household Appliances , Meet Energy Star Level V

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

0.2A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

6.0 Vdc

5.7?~?6.3 Vdc

800mA

Efficiency :

> 75%

< 60mVp-p

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V(CEC)

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics :

Size:

65mm*40mm*32mm (L*W*H)

AC connector

Interchangeable UK, US, EU, SAA available

DC Cable:

1.8M

DC connector:

5.5*2.1*12mm, other type connector avaible
