Home > Products > UAV Quad Copter > Light Foldable UAV Quad Copter , Remote Control 4 Axis Quadcopter model kits

Light Foldable UAV Quad Copter , Remote Control 4 Axis Quadcopter model kits

FOB Price

USD $86 - $323 / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AMS		Place of Origin	China
Model Number	quad axis

Product Description

Delivery Time:3-5 work day
Certification:ISO,CE

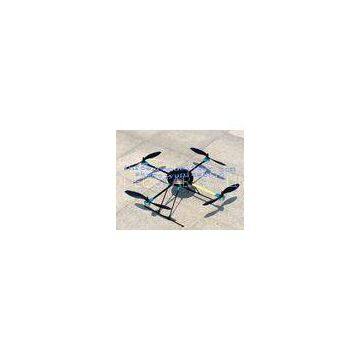

Light Foldable UAV Quad Copter , Remote Control 4 Axis Quadcopter

Quick Detail:

AMS4580 Quadcopter is a high precision four-rotor aircraft designed for stable recreational flight and aerial photography.

The AMS4580 can take off and land vertically, hover, altitude hold, fly left, right, forward and back with ease.

Description:

The aircraft arrives fully built and flight tested. However, to ship it to you the landing gear and propellers had to be dismantled - a 15 minute reassembly job. To get this unit flying, you will need your RC Gear (at least 4 Channel Receiver) and 3s1p LiPo battery (2200mAh). Lift is achieved using four high efficiency 12-inch propellers with direct drive low KV brushless motor. Maximum lifting efficiency of 12g per Watt. The AMS4580 utilizes a high-performance MEMS sensor for 6 DOF stabilization with low drift. Altitude hold is achieved via an integrated barometric sensor.

Applications:

4 units integrated brushless motors, 12 A maximum load.? Motor and ESC overload and burn-out protection – motors are gradually turned off if overloading is detected by the ESCs. Flight controller with six high-performance MEMS transducer to achieve the stable, reliable and drift-free stabilization.

Specifications:

No.	Part	Parameter
1	Aircraft size	608 mm × 608 mm × 243 mm
2	Maximum expandable size ?	885 mm × 885 mm × 243 mm
3	Motor to Motor	Diagonal distance between two motor centers: 580 mm
4	Propeller ?	1260, pusher and normal high efficiency props (12 Inches)
5	Battery	LiPo 3S1P 2200mAh 20C
6	Aircraft weight (kit only)	730 grams
7	Take-off weight	950 grams (3S 2200mAh 1P Battery, receiver, cover)
8	Recommended Payload (Camera and mount)	230 grams (recommended)
9	Maximum payload	580 grams
10	Maximum takeoff weight	1800 grams
11	Flight distance	Depends on user Radio system and battery capacity
12	Flight Time	12 minutes (3S1p 2200mAh 20C Battery)
13	Wind Resistance	Class 4

Competitive Advantage:

Flight controller is ready for PTZ stabilization

Upgrading this basic quadcopter for aerial photography is easy via plug-n-play camera mount and stabilization system.
