Home > Products > Surface Roughness Tester > Portable Handheld Digital Surface Roughness Tester Ra, Rz, Rq, Rt Testing
Portable Handheld Digital Surface Roughness Tester Ra, Rz, Rq, Rt Testing
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Integrated High Speed Thermal Printer Portable Hardness Tester MH310
-
CDX- Multi-functional Magnetic Particle Detector, Fault Localization Equipment, Portable Flaw Detec
-
Surface Roughness Measuring Instrument, Handheld Portable Digital Surface Roughness Tester
-
Portable Eddy Current Flaw Detector For Rods, Wire, Wire, Profiles Online Offline Testing MEC-100
-
Single pointer Portable Hardness Tester, Shore hard rubber Durometer LX-D-1
-
Economical Integrated Portable Portable Hardness Tester, Leeb Testing Equipment
Product Details
| Brand Name | MITECH | Place of Origin | China | |
| Model Number | MDT310 |
Product Description

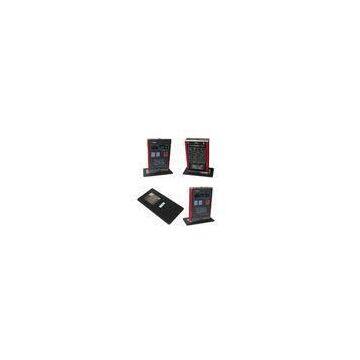

Portable Handheld Digital Surface Roughness Tester Ra, Rz, Rq, Rt Testing
MDT310 surfaces roughness tester?
Description:
The product is a new portable Surface Roughness Tester developed by our company. Featuring high accuracy,wide range of application, simple operation and stable performance. It is widely applicable in testing surfaces of all kinds of metals and non-metals. Integrating pick up with the main unit, it is a hand-held set, especially suitable for use on production sites.
Specifications:
|
Testing parameters(μm ) |
Ra,Rz,Rq,Rt |
|
Stroke length(mm) |
6 |
|
Sample length(mm) |
0.25 ,0.80 ,2.50 |
|
Evaluation length(mm) |
1.25 ,4.0 |
|
Measuring range(μm ) |
Ra:? 0.05 ~ 10.0 Rz:? 0.1 ~ 50 |
|
Error |
±15% |
|
Variability |
＜12% |
|
Transducer contacting pin round diameter and angle |
Contacting pin round diameter:10 μm±1 μm Degree: |
|
Battery |
3.7V Li |
|
Size |
106 mm×70 mm×24 mm |
|
Weight |
200g |
|
Working conditions |
Temperature:? -20℃～40℃ Relative humidity:?? <? 90% No shake and corrosivity around |
Standard Package:
|
Name |
Qty |
|
MDT310 main unit |
1 |
|
Roughness specimen |
1 |
|
AC adapter |
1 |
