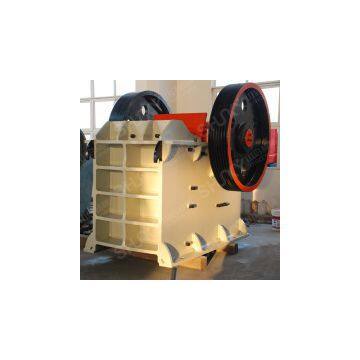

China Supplier of New Jaw Crusher

Product Description:

PE600x900 jaw crusher is mainly used for medium crushing of various ores and bulk materials. It can also be used to produce paving stones and building gravels. Jaw crusher is widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry. The compressive strength of the material to be crushed should be under 320Mpa.Jaw crusher capacity for sale is usually used for medium crushing and fine crushing. It holds features such as large crushing ratio, high yield, uniform product size, simple structure, reliable operation, easy maintenance, etc.

Working principle:

PE600x900 jaw crusher adopts extrusion crushing. Its working principle is as follows: the motor drives belt and pulley wheel, making the movable jaw upside and down through the eccentric shaft. When the movable jaw rises, the angle between toggle plate and movable jaw becomes large, and the movable jaw plate is pushed close to the fixed jaw plate, meanwhile the materials are crushed or milled, rubbed to realize the crushing purpose. On the contrary, when the movable jaw down, the angle becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the rod and spring. Then materials have been crushed are discharged from the bottom opening of crushing cavity. With the continuous rotation of the motor, the movable jaw cyclically crush and discharge materials, realizing mass production.

Features:

Large crushing ratio, even granularity size, simple structure, reliable operation, easy maintenance, low operating costs.

Precautions:

Before booting, the operator should check fasteners, especially bolts of lubrication and other parts. All lubrication parts must maintain sufficient lubrication oil. Tighten loose bolts, clean up residues in the crushing cavity, and then can you start the crusher to work. Remember even feeding, but not to feed too much once and not feed for a long time, as too much will cause blockage. Movable jaw plate, fixed jaw plate, side guard plates, roof plate are wearing parts, which you should take care to maintain!
