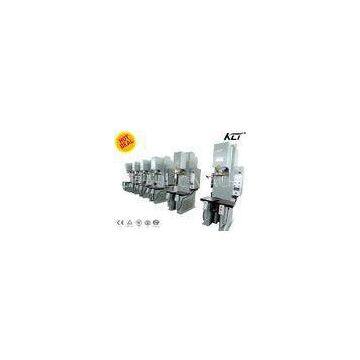

High-Speed CNC C-Type Hydraulic Mounting Press For Steel Bending

Brand Name	KLT		Place of Origin	China
Model Number	YKT-63T

Delivery Time:15-30 days
Certification:ISO 9001-2000,CE

High-Speed CNC C-Type Hydraulic Mounting Press For Steel Bending

Quick Detail:
?
YKT Series C-type High-speed Hydraulic Press is a kind of multifunctional machine with high speed.

C frame hydraulic press machine High speed press machine Adopted manual hand button and emergency stop button Apply to shallow drawing, stamping and pressing working process Equipped Mitsubishi PLC and CNC control system. Cold or heat hydraulic oil press machine Apply to industry of machine tool, power engine, axle, bearing, washing machine, plastic product, powder molding, electric and etc. Hydraulic press model are from 2.5ton,6.3ton,10 ton, 16 ton, 25 ton,40 ton,63 ton, to 100 ton

?
Description:
?

YKT series High-speed hydraulic press has wide generality. It is suitable for the arber of parts like bearings and sleeves. The machine tool can also complete the technology function of bending, marking and shelling of plate material parts, and the function of stretching of simple parts. It is suitable for the flow assembly of automobile, machine tool, internal combustion, textile machinery, washing machine, automotive electrical appliance, motorcycle shock absorber, air conditioner appliances and so on. The machine operated by hand, the pressure can be adjusted within the range specified, the operation is simple, flexible, safe and reliable. High precision adjustment, movement speed is fast, repeatability and stability. Under program control, the machine automatically realize the fast forward, slow forward, quick return and other movements.

?
?
Applications:
?

It mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts, motor components and powder metallurgy. The machine, with a high degree of automatization, is particularly suitable for the mass production of parts.

?
?
Specifications:
?

Type	Unit	63T
Nominal pressure	KN	630
Max. pressure of liquid	Mpa	18.5
Max. opening height	mm	800
Max. stroke of slider	mm	500
Downstream speed of slider	mm/s	85
Working speed of slider	mm/s	Adjustable range: 7—15
Return speed of slider	mm/s	120
Throat depth	mm	300
Table size	F.B.	mm	550
L.R.	mm	700
Operation height	mm	715
Blanking aperture	mm	100
Power of motor	KW	8.5
Overall dimension	F.B.	mm	1530
L.R.	mm	1600
Above floor	mm	2900
Total weight
