Home > Products > Metal Dome Membrane Switch > Dust - proof Metal Dome Membrane Switch 0.05mm - 1.0mm For Instruments

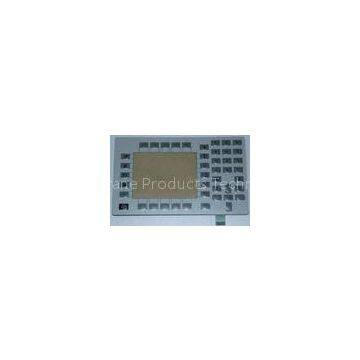

Dust - proof Metal Dome Membrane Switch 0.05mm - 1.0mm For Instruments
- T/T L/C D/P D/A
- 7 days
You May Like
-
Backlit Waterproof Membrane Switch For Commercial Usage , Low Power
-
250V DC Dust proof Beautiful Flat Membrane Switch Panel For Subway Etc
-
Professional FPC Flexible Printed Circuit Board For Electrical Appliance
-
Custom made 7 Inch Anti Corrosion Glass LCD Touch screen panel
-
PVC Waterproof Membrane Switch With Metal Dome , Insulation Resistance
-
Moisture Proof Flexible Membrane Switch Overlay LED Push Button membrane panel
Product Details
| Brand Name | TKM MS | Place of Origin | China | |
| Model Number | TKM—MS--005 |
Product Description
Certification:ISO9001:2008, SGS,Rohs
Dust - proof Metal Dome Membrane Switch 0.05mm - 1.0mm For Instruments
Quick Detail:
|
Operation Temperature: |
-40℃～70℃ |
Insulation Resistance: |
＜100MΩ,250V DC |
|
Certificate: |
SGS , Rohs |
Feature: |
Dust-proof , Waterproof |
|
Adhesive: |
3M467 & 3M468 |
Material: |
PET /PC |
Specifications:
1 material : PET /PC
2 adhesive: 3M467 & 3M468
3 High life time :>1million times
4 Pass:ISO9001:2008RoHS.
5 High quality
|
rated current |
25-100mA,0～30V DC |
|
material |
PET /PC |
|
Adhesive |
3M467,3M468,and no adhesive |
|
Feature |
moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof |
|
wire lead resistance |
＜1Ω/CM |
|
Insulation resistance |
＜100MΩ,250V DC |
Specialize in manufactuing membrane switch
Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape
EL backlight +Rubber keys
Aluminum plate+Rubber keys
Metal domes
Flat without Tactile Effect
Embossing with Tactile Effect
Embossing with Metal Dome
Membrane Switch with FPC
|
Metal ?Dome Membrane Switch |
|
|
Material |
Matte PC(smooth),gloss PC+matte oil ,gloss PC,PET,and PVC |
|
Thickness |
0.05-1.0mm |
|
LED windows |
Transparent,translucent,matte,gloss |
|
Embossed keys |
No embossed keys and domes,domes without embossed keys,embossed keys without domes,embossed keys and domes |
|
Adhesive |
3M467,3M468,and no adhesive |
|
Tail |
Tail with clear mask or green mask |
Applications:
Products are widely used in communication, industrial control, household appliances, GPS, children\'s kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,
Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,
Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.
|
Technical Specification Of Membrane Switch |
|||
|
wire lead resistance: |
＜1Ω/CM |
Life time: |
>1 Million times |
|
rated current: |
25-100mA,0～30V DC |
Operation Temperature: |
-40℃～70℃ |
|
Rated Voltage: |
＜50V, DC |
Operation Humidity: |
at40℃,＜98%RH |
|
Insulation resistance: |
＜100MΩ,250V DC |
Dome springback time: |
＜5 msec |
|
Switch travel: |
Flat Type 0.05-0.3mm |
Base Material voltage withstand: |
