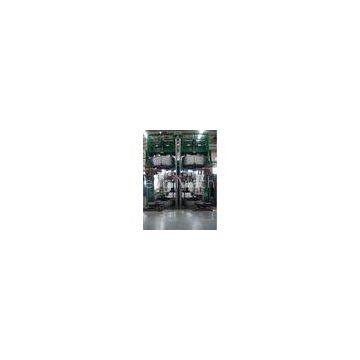

Modular Design Hydraulic Tyre Curing Press Machine Lly1650bbc0b
- T/T L/C D/P D/A
- 7 days
You May Like
-
Heavy duty hydraulic tyre curing press / Curing Press Machine
-
fully automatic hydraulic tyre curing press high closing force
-
Fully automatic Tire Rubber Curing Press Hydraulic Tyre Curing Pressing machine
-
Electric Vulcanizer Machine FOR Rubber TIRE / Conveyor Belt Vulcanization
-
Frame Modular Rubber Curing Press Tire Hydraulic Plate Vulcanizer 600 Ton
-
Steel - Telted Tyre Vulcanizing Machine Automatic Car Tire Vulcanizer
Product Details
| Brand Name | ROSNM | Place of Origin | China | |
| Model Number | 48 model |
Product Description
Certification:ISO9001
Modular Design Hydraulic Tyre Curing Press Machine Lly1650bbc0b
Quick Detail:
|
Name |
Tire Curing Press |
Brand Name |
ROSNM |
|
Color |
As your request |
Feature |
B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame |
|
Warranty |
1 year |
Place of Origin |
CHANGZHOU |
|
control |
PLC |
Certificate |
ISO9001 |
Description:
PRODUCT IDENTIFICATION NUMBER: LLY1650BBC0B
> Max Mould Closing Force:3800KN
> Hydraulic Pressure:17Mpa
> Dia. of Platen:Φ1650mm
> Bead Range:20\"-25\"
> Power supply: 380VAC±10%? 50Hz
> Auxiliary power: 220VAC? 50Hz
> Equipment using the environment temperature: Max. 70 ℃
> Circle: ≤70 sec
> Main body of vulcanizer Types: Frame hydraulic- drive type
> Maximum mold clamping force: 1800KN External-temperature steam pressure?? 1.2Mpa
Internal-temperature steam pressure? ?1.6Mpa
Applications:?
Used for vulcanization of steel-belted tire
Specifications
|
Model |
RUBBER TIRE |
|
Type of main drive |
Steel-belted tire |
|
Diameter scope of tire |
16″～25″ |
|
Maximum mold clamping force |
4900KN × 2 |
|
Height of vulcanized green tire |
2350～650mm |
|
Mold type |
Segmental mold |
|
Stroke of upper ring |
1150mm |
|
Stroke of lower ring |
150mm |
|
Once-setting nitrogen pressure |
0.02—0.03Mpa |
|
Twice-setting nitrogen pressur |
0.06-0.1Mpa |
|
Nitrogen pressure?? |
Max. 3.0Mpa |
|
Number of working positions |
4 working positions |
|
Position changing type |
Turn 180° |
|
Adjustment of? chuck gap |
Manually/automatically |
|
Three pneumatic components (air pressure regulator, air filter and atomized lubricator) |
SMC |
|
Nitrogen balance valve |
USA HONEYWELL |
|
Displacement pickup |
German Balluff,German ASM,American MTS |
|
Approach switch |
Japan? OMRON,Korea? AUTONICS,German TURCK |
|
Rotary connector |
Japan ROCKY /Korea VALAS |
|
Hydraulic pump |
Japan YUKEN Germany? REXROTH USA VIKERS |
Why to choose our Tire Curing Press
1: Tire pushing device (lower ring)
Each mold is with two oil cylinders and direct pushing type.
2: It’s is structure type, with sufficient rigidity.
3: Main body
The main body consists of rack, opening and closing organization of mold, vulcanization house and adjusting mold organization, pressure organization, central organization and tire pushing device and so on.
