Manual Superficial Rockwell Hardness Tester, NDT Hardness Test Machine HRM-45

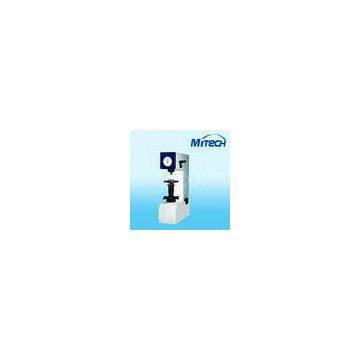

HRM-45 Manual Superficial Rockwell Hardness Tester
Description:
HRM-45 Manual Superficial Rockwell Hardness Tester adopts mechanical and manual testing method, without electrical device. With simple appearance, it uses as popular type Rockwell Hardness testing instrument.
Applications:
Surface hardened steel, copper, aluminum alloy sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.
Specifications:
|
Rockwell Scales |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
Initial Testing Force |
3kgf (29.42N) |
|
All Testing Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) |
|
Indication of Hardness Value |
Dial |
|
Overall Dimension |
520×240×700mm(L×W×H) |
|
Net Weight |
80kg |
|
Max Height of Speciment |
170mm |
|
Max depth of speciments |
165mm |
|
Carried Standard |
GB/T230(1.2) Chinese Standard |
|
Standard Accessories |
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and Vshaped Testing Table, HRC and HRB Hardness Blocks. |
