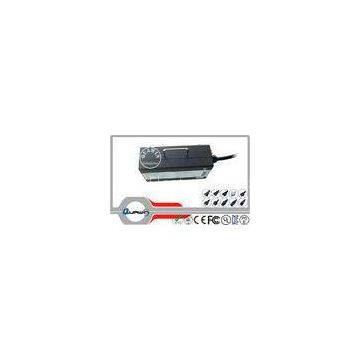

PFC CC - CV Lithium-Ion Battery Chargers , AC 100V - 240V 45HZ / 65Hz Input 26A

PFC CC - CV Lithium-Ion Battery Chargers , AC 100V - 240V 45HZ / 65Hz Input

Quick Detail:

Brand Name:QUAWIN

Model Number:QW259-260-L

Use:25.9V Li-ion or Li-polymer battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 29.4V

Certificate:CE UL SAA ROHS

Color:Black

Input voltage:AC 100~240V 45/65Hz with PFC

Output voltage:29.4V

Output current:26A

Output power:764.4W

Charge mode:CC—CV(Constant Current—Constant Voltage),with MCU controller.

Output Connector:Alligator Clip,SR175A Output Plug,SB175A Output Plug,SB50A Output Plug,Custom

Packaging & Delivery :

inner package: white box/polybags/at your request outer package:carton

Delivery Detail:sample within 5 work days,7~25 days for bulk order

Specifications:

?25.9V Li-ion or Lithium Polymer battery PACK

Features:

? ? Charging mode:CC—CV(Constant Current—Constant Voltage),with MCU controller.
? ? High efficiency and low power consumption
? ? Stabilized output and low noice
? ? Efficiency(at 100% load): ≧90%
? ? Operating temperature:-10C ~ 45C
? ? Storage temperature:-20C ~ 70C
? ? Operating humidity:5%~90%RH
? ? Shock & Vibration:SAEJ1378 Standard
?

Specification:

? ? Input: AC 100~240V 45/65Hz with PFC

? ? Output: DC 29.4V

? ? Charging current: 26A

? ? Weight: 2500g(only body)
? ? Dimension:234*120*84mm

Safety protections:

? ? Over Voltage protection

? ? Short Circuit protection

? ? Polarity error protection

? ? Over power protection

LED Indicator:

? ? GREEN Light ON: fully charged or no connected.

??? BLUE Light flash: battery is being charged.

? ? RED Light ON: Charger under protection (over temperature protection, output short-circuit protection, reverse polarity protection, output over-voltage protection).

Call us to know more details datasheet.
