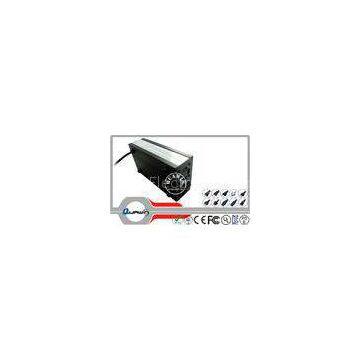

Lithium Polymer Battery Rechargeable Battery Chargers With MCU Controller

Lithium Polymer Battery Rechargeable Battery Chargers With MCU Controller

Quick Detail:

Brand Name:QUAWIN

Model Number:QW148-210-L

Use:14.8V Li-ion or Li-polymer battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 16.8V

Certificate:CE FCC UL SAA PSE ROHS

Color:Black

Input voltage:AC 90～132V or 180～264V or 100~240V 50/60Hz with PFC

Output voltage:16.8V

Output current:21A

Output power:352.8W

Charge mode:CC—CV(Constant Current—Constant Voltage),with MCU controller.

Output Connector:DC Jack,crocodile clip,Cigar lighter,XRL,Ring terminal,Custom

Packaging & Delivery :

inner package: white box/polybags/at your request outer package:carton

Delivery Detail:sample within 5 work days,7~25 days for bulk order

Specifications:

?14.8V Li-ion or Lithium Polymer battery PACK

Features:

? ? Charging mode:CC—CV(Constant Current—Constant Voltage),with MCU controller.
? ? High efficiency and low power consumption
? ? Stabilized output and low noice
? ? Efficiency(at 100% load): >=87%
? ? Operating temperature:-10C ~ 45C
? ? Storage temperature:-20C ~ 70C
? ? Operating humidity:5%~90%RH
? ? Shock & Vibration:SAEJ1378 Standard
?

Specification:

? ? Input: AC 90～132V or 180～264V or 100~240V 50/60Hz with PFC

? ? Output: DC 16.8V

? ? Charging current: 21A

? ? Weight: 1500g(only body)
? ? Dimension:203*106*55mm

Safety protections:

? ? Over Voltage protection

? ? Short Circuit protection

? ? Polarity error protection

? ? Over power protection

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

? ? Charging:Red LED

? ? Battery Full:Green LED

Call us to know more details datasheet.
