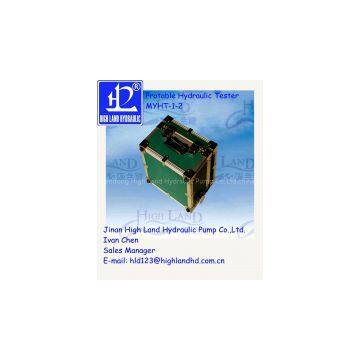

Portable Hydraulic Flow Testers

Application Range：

Summary

   MYHT Hydraulic Tester,researched and produced by Jinan High Land Hydraulic Pump CO.,Ltd. is a kind of practical and new type product with patent.

MYHT-1 Series Hydraulic Tester Feature:

1. High precision-scale span ±1%

2. Turbine flow sensor-fast response,antipollution,low pressure loss

3. With fast-measuring,high-accuracy and good-stability Platinum Resistance Temperature Sensors

4. Flow and temperature display—using four LED digital tube,free of low temperature limit, Instantaneous flow rate 0.000-9999,breakpoints data keep 10 years

5. Presure indication:Seismic-resistant gauges with super stable and overload ability

6. Security design—Indicators for reverse connection of test gauges,and for pressure,power

7. Easy operation—Flow rate,pressure ang temperature can be tested simultaneously at one point.Pressure valve adjusts with light power,and the loading is smooth and quickly,accurate.To
ensure the accuracy of measurement,the temperature should be kept within ±3 degrees.Low pressure gauge by pressure-measuring line can measure controlling system’s pressure

8. Wide Application-compact structure,light weight,pump test,online system test,applicable for rapid diagnosis for all kinds of mobile and fixed hydraulic system and components

                                                                   Technical Parameters：
                         Technical Data:
Flow Rate:  500L/min
Precission:  ±1%
Pressure:  420bar
Temperature:  150℃
Weight:  10.2kg
Specipications: 280×245×172(mm)
