Home > Products > CMO LCD Panel > Square LCD Monitor Digital CMO LCD Panel 400nits for Tablet PC 211.2H x 158.4V
Square LCD Monitor Digital CMO LCD Panel 400nits for Tablet PC 211.2H x 158.4V
- T/T L/C D/P D/A
- 7 days
You May Like
-
Computer LCD Monitor CMO LCD Panel with TTL Electrical Interface 10.4\"
-
G104V1-T03 Original Custom CMO LCD Panel / Industrial RGB LCD Displays 640x480
-
Durable Wateproof CMO LCD Panel 10.4\" High Definition 238.6X175.8X7.5 mm
-
Industrial CMO LCD Panel TFT Display Screen with RGB vertical stripel , Anti Glare
-
Original Replacement Laptop CMO LCD Panel / LCD screen 12.1\" 400nits
-
CMO THT industrial 1280 x RGB x 800 LCD module G121I1-L01 with LED Backlight
Product Details
| Brand Name | CMO | Place of Origin | China | |
| Model Number | G104S1-L01 |
Product Description
Certification:CE ,ROHS
?
?

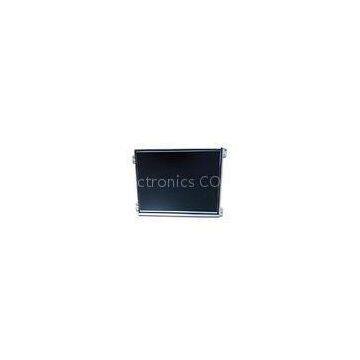

Square LCD Monitor Digital CMO LCD Panel 400nits for Tablet PC 211.2H x 158.4V
?
?
Quick Detail:
?
1. Lcd size:10.4\"
2. Resolution: 800 x R.G.B. x 600
3. Brightness:400nits
4. Weight: 355g
5. Backlight:LED
?
?
Applications:
?
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
?
?
?
Specifications:
?
Items | speciation |
Screen Diagonal(inch) | 10.4\" |
resolution | 800 x R.G.B. x 600 |
Active Area | 211.2(H) x 158.4(V) |
pixel Pitch(mm) | 0.264(H) x 0.264(V) |
Pixel Arrangement | R.G.B. Vertical Stripe |
brightness | 400nits |
backlight | LED |
viewing angle | 70/70/80/80 |
Display Mode | TN, Normally White |
Nominal Input Voltage VDD(volt) | 3.3 typ. |
Weight(gram) | 355g |
Physical Size(mm) | 243(W) ×184(H) ×7.0(D) mm |
Electrical Interface | digital |
Surface Treatment | Anti-Glare, Hardness 3H |
Color Depth | 262K |
The most suitable view angle | ?12’clock |
RoHS Compliance | RoHS Compliance |
?
?
Competitive Advantage:
?
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel\'s brightness.
?
?
?
?
