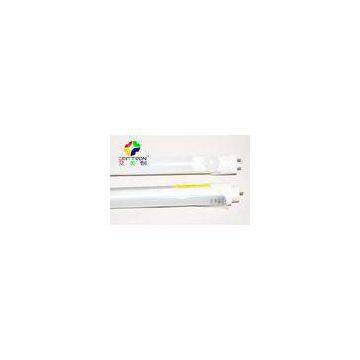

Church 3000K 2ft T8 Sensor LED Tube Lighting 9 W SMD 3014 , 200LM - 800LM

Brand Name	EMITTRON		Place of Origin	China
Model Number	SMT806-9XW-PIR

Delivery Time:5-10 days
Certification:CE|ROHS

Church 3000K 2ft T8 Sensor LED Tube Lighting 9 W SMD 3014 , 200LM - 800LM

US$6.5/pc for 0.6m 9W LED T8 PIR Sensor Tube Light

Part Number: SMT806-9XW-PIR Brand Name:EMITTRON Product Description:3-9W T8 600mm PIR tube light Light source: SMD 3528/3014 Driver: Internal Linear IC PIR driver Control mode:Passive infrared sensor(PIR) Input Voltage: AC 190-250V? Power Factor: >0.5 Luminous Flux:200-800LM CRI: RA>70 CCT:3000K-4000K-6000K Beam Angle: 180 degree Material: Aluminum +PC Cover Color options: Milk White Lifespan:>30000Hrs

Product Feature:

SMD 3528/3014, High brightness, good efficiency. SMD LED lined the tube, with even lighting. Input voltage AC190-250V,Built in internal intelligent Control IC providing over voltage protection(OVP) and overheat(OHT) protection. Power 9W, replace 20W fluorescent tube; PIR control ,intelligent dimmer, energy saving more than 75% (3W energy saving status, working state 9W); Large inductive Beam Angle about 110 degree. Long inductive distance for 5-8m. intelligent delay 50 seconds; High sensitivity, anti-interference ability, does not produce false star；

IC Driver Feature:

Simple Circuitry, Reduce components used, Easy integration to various lighting products, simple and efficient production process； No high-frequency transformers required, No inductors and large electrolytic capacitors, result to longer lifespan； Low harmonic distortion results to no flickering Meeting EMC certification requirements； Built in Internal Intelligent Control IC providing overheat (OHT) protection； The unique feature of the IC\'s function is the Input Voltage management function. It is suitable to design in lighting products where the input AC voltage supply is unstable； Significant reduction in Manufacturing Costs (Material, Labor and Time).LED Lightings has entered to our Life, Time to make them Affordable and more efficient!

Technical Parameters:

Item No.	SMT806-9XW-PIR
Light source	SMD 3014/3528
Input voltage	AC190-250V
Luminous Flux	200-800LM±5%
CRI(RA)	>70
Material	Aluminum +PC Cover
PCB	Aluminum PCB
CCT	3000K,4000K,6000K
Beam Angle	180 degree
Lifespan	>50000Hrs

Packing:

Product Size: 32*600mm Carton Size: 650*240*240mm?? 4kg? 20pcs/ctn

Application:

Widely used in Supermarket , school , hospital , church , station , office ,Underground parks, basements , lobbys, storerooms, washrooms etc.
