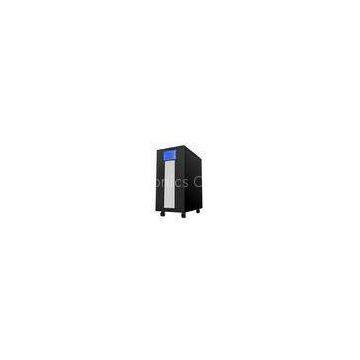

1mS Low Frequency Online UPS IEC EN62040-02 384VDC

FOB Price

Negotiable / Box

1 Box(Min.Order)

Supply Ability 0 Box / Boxes per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	TD33 10-40K

Product Description

Delivery Time:2 weeks
Certification:ISO 9001,CE

1mS?Low?Frequency?Online?UPS?IEC?EN62040-02?384VDC

Quick Detail:

Rate Capacity:10K-200KVA Power factor:0.8 Input:380Vac±20% (3 Phase) Output:380Vac Line Voltage (3 Phase) Output Converting time(Normal Mode)<1mS Output Converting time(ECO Mode)<25mS

Specifications:

MODEL (3 Phase Input /3 Phase Output)	TD3310K	TD3320K	TD3330K	TD3340K	TD3360K	TD3380K	TD33100K	TD33120K	TD33160K	TD33200K
Input Mains	Rated Voltage(V)	380V(Line Voltage)
Rated Voltage & Range(V)	380V±25%
Frequency & Range(Hz)	46Hz-54Hz, 56Hz-64Hz
Bypass Input	Rated Voltage(V)	380V(Line Voltage)
Rated Voltage & Range(V)	380V±25%
Frequency & Range(Hz)	46Hz-54Hz, 56Hz-64Hz
Output	Rated Power	10KVA /8KW	20KVA /16KW	30KVA /24KW	40KVA /32KW	60KVA /48KW	80KVA /64KW	100KVA /80KW	120KVA /96KW	160KVA /128KW	200KVA /160KW
Rated Voltage(V)	380V(Line Voltage)
Rated Voltage & Stability	380V±2%
THDV	Linear Load	≤3%
Non-linear Load	≤8%
Output Power factor	0.8(Lag)
Tracking Fruquency & Range(Hz)	46Hz-54Hz, 56Hz-64Hz
Fruquency & Stability (Battery Inverter)	(50±0.1)Hz, (60±0.1)Hz
Overload Capability	Less than 105%±5% for overload alarm; 105%±5%~125%±5% for 2 minutes; 125%±5%~150%±5% for 30 second; More than 150%±5% for 0.5 second;
Converting time (Normal Mode)	<1mS
Converting time (ECO Mode)	<25mS
System	System Efficiency (Linear Load)	≥76%	≥82%	≥85%	≥89%	≥90%
Display	LCD+LED
EMS /EMI	Transmission	IEC EN62040-02
Radiation
Resisting? Interference	IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III
Safety Requirements	GB4943-2001/IEC62040-1
Noise Level (1M)	≤55dB	≤70dB
Isolate Impedance (Ω)	>2M(500VDC)
Surge?Current ?Protection	IEC60664-1 IV
Environment	Operating Temperature	0℃ - 40℃
