Home > Products > Fiber Optic Splice Closure > PC Fiber Optic Splice Closure airtight direct buried -40C ~ 80C

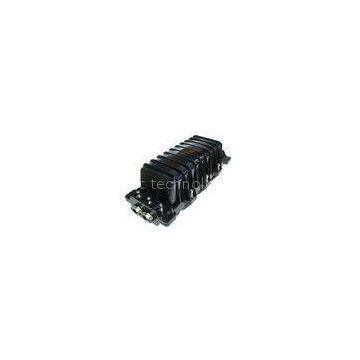

PC Fiber Optic Splice Closure airtight direct buried -40C ~ 80C

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM & SINDA ODM		Place of Origin	China
Model Number	SD09-17

Product Description

Delivery Time:5~10 days
Certification:ISO, ROHS

Material PC Horizontal Fiber Optical Splice Closure With Max 48 Core
?

?
Quick Detail:
?
?

Products Size :?520*200*120

Material: ?PC

Max Capacity: ?144 cores

Fiber Per Tray : ?24 cores

N.W : ?Approximately3.5kg

Place of Original : Guangdong, China?
?

?
Description:
?
?

Maximum capacity:144

Seal way: Rubber seal

The use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes?
The use of reusable components to open seal in order to ensure a good airtight waterproof performance.?
Does not require special tools, easy to install and open the duplicate.

The scope of application : aerial, direct-buried, wall-mounting, duct-mounting,

The application of temperature?:--40C ~80C

?
?
?
Applications:?
?
?

Optical networks

Local area networks

Wide area networks

?
Specifications :

Product outlook size ? ? ? ? ? ? ? ? ? ? ??	520200120 ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
Product material quality	PC(Polycarbonate)
Product weight	Approximately3.5kg
Suitable Dia of cable	8-23mm
Fibers/Tray	12 Or24
Max capacity(F)	144
Outside box size	52.521.517.5 -----5445.554.5
Each packing quantity	6?pieces

Competitive advantages:

? ? Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.?

? All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

? We wish to create better future of optical communication industry jointly with both new and existing customers.

?
?
?
Products Accessories :
