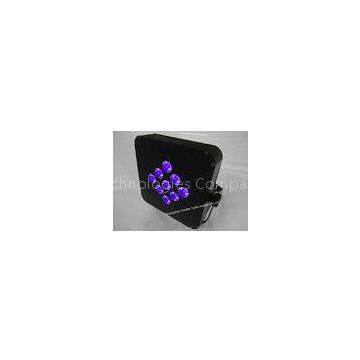

RGBWAU Rechargeable Portable LED Stage Light , Green / Blue / White / Amber / UV Led Lighting

?RGBWAU Rechargeable Portable LED Stage Light , Green / Blue / White / Amber / UV Led Lighting

Quick Detail:

9 LED 6IN1(RGBWAU) 12W

Built-in Li-ion battery for 3 -12h of operation

2.4GHz Wireless DMX512

CE,?RoHS

Specifications:

Description:

Full color dimming: 255 grade brightness tunning, sound activation

Full color Jumping change: Red, Green, Blue and White color jumping in turns, 255 grade speed control, sound activation

15 color jumping change: 255 grade speed control, sound activation

Multicolor graduating change: 255 grade speed control, sound activation

Multicolor strobe: 7 colors strobe in turns, 255 grade speed control, sound activation.

Auto Run, Built-in programme circulation

Master/Slave: Multiple units linked, slave changes with master synchronizingly.

DMX dimming: Different units are assigned their own DMX address, their outputs are changing with the data of the DMX controller.

1-LCD Display? 2-Operation Button? 3-Wireless DMX Indicator? 4-Sound Activation Indicator? 5-DMX Signal Indicator? 6-MIC

7-DMX Socket? 8-Antenna? 9-Battery Charging Indicator? 10-Power Out? 11-Power In

Button Description

MODE:Working Mode Switch

SETUP:LCD Cursor Moving Key, Flashing Position is the parameter to be revised

UP:Data Up

DOWN:Data Down

Function Setup

Press SETUP key to switch among all sub-function key, speed, sound button, etc. Cursor flashing position is the parameter to be revised. Press UP or DOWN to adjust the data. It can be master unit.

For example: LCD displays\"4.FADE S010 A:N\"

4.FADE: NO.4 function, Fade

S010: Speed value 10

A:N: Sound Activation closed

Auto Run the combination function of all sub-functions, it can be the master

unit,set the Sound Activation parameter to be \"N\" to close the Sound Activation

Mode of the sub-function.

Address Range: 1-512, Press UP to setup address upward and DOWN to setup

address downward. There are two DMX channels for your choices:

DMX 6CH & DMX 8CH:

DMX 6CH Mode:

CH1:0-255 Red Dimming Range

CH2:0-255 Green Dimming Range

CH3:0-255 Blue Dimming Range

CH4:0-255 White Dimming Range

CH5:0-255 Amber Dimming Range

CH6:0-255 UV Dimming Range

DMX 8CH Mode:

CH1:0-255 Red Dimming Range

CH2:0-255 Green Dimming Range

CH3:0-255 Blue Dimming Range

CH4:0-255 White Dimming Range

CH5:0-255 Amber Dimming Range

CH6:0-255 UV Dimming Range

CH7:R, G, B, W, A, U General Dimming

CH8:Strobe Speed

Choose Slave Mode, Synchronizing with Master Unit.

Press SETUP, UP OR DOWN at present mode to display current ID, press again to setup new ID, ID value will be added 1 more by pressing one time, ID indicator color will change according o
