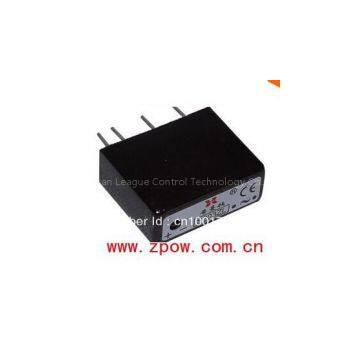

Solid state relay Ximandun S series S203ZL 3A 40-280V SSR

Item specifics

• is_customized:

• Yes

• Brand Name:

• Ximandun

• Protect Feature:

• Epoxy

•


Product Description

Ximandun products on the market at present, severely damaged the Ximandun and stein burger’s good brand image, stein burger’s legitimate rights and interests have been infringed, but also damage the vital interests of the broad masses of users. In order to safeguard the interests of customers, maintain Ximandun brand, stein berg (Beijing) electronics co., LTD. For its Ximandun series products enable or code anti-counterfeiting mark, customer can scan or code at any time by smart phones, obtain complete information of the product.

Ximandun solid-state relays and related products of key components are imported from Germany; Factory four times before and after each product all pass strict inspection in strict accordance with ISO9001:2000 international quality standard production. Always in the customers enjoy the reputation of "high quality, high reliability and obtain the European CE certification.

Ximandun is authentic seaman's manufacturer in China.

Characteristic:

The rated working voltage of AC 220 v; Photoelectric isolation of the input stage, TTL level compatible with the input, the dc is triggered, triggering current is small.

Input and output the isolation voltage is greater than 2000 v, the safety of the insulation between the input and output and pan voltage is greater than 2000 V.

Non-contact, no mechanical moving parts, no spark, no noise, shock resistance, long life; The small dead band voltage without the harmonic interference; Optional: RC absorbing circuit itself.

Precautions

The power part adopts the bidirectional thruster components, do not apply to the strong electromagnetic interference circumstance; The power part adopts the bidirectional thruster components, do not apply to the current voltage instantaneous rise faster devices. General power is small, do not apply in the occasion of high power; When used as the trigger encourage junior power devices such as link, orders should be a statement to the built-in RC absorption circuit; Only offered zero, at the same time the zero solid is not suitable for use in the perceptual load.

Input voltage: 4-12V

Input current: 8mA

Onput voltage: 40-280V

Rated current: 3A

Peak on-state voltage:  <1.5V

Off-state leakage current: <3mA

Insulation voltage:  >2000VAC

Isolation voltage:  >2000VAC

Working temperature : -30-40°C

Operation mode: Zero trigger

P: In applying appropriate input control signals, SSR conduction, immediately after the signal undo, load current is less than the SCR to maintain current, SSR shut off.

Z: The load power supply voltage reached zero zone conduction and shut off, but may cause the biggest half power cycle delay
