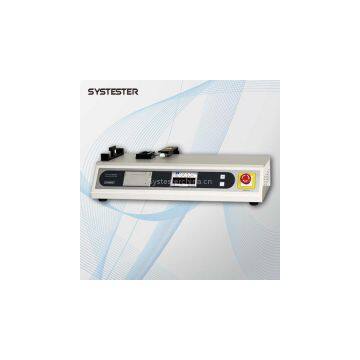

Adjustable angle coefficient friction tester

Application

Applies to plastic films,laminated films, extrusion films, foils, sheets, rubber, paper, paperboard,wood, brake pad, tyre, windshield wiper, conveyor belt, hare, metal, carbonrod, catheter, artificial skin etc testing of static coefficient and dynamiccoefficient, especially used in food & pharmaceutical industries, qualityinspection departments as well as research and development institutions.

Features

1: 2 patents and 2 counts ofsoftware copyright registration.

2: Designed based on ISO, GB standard.

3: Highly accurate load cell.

4: Test speed can be set freely through touch screen.

5: Keyboard + touch screen operation.

6: Real color TFT LCD display.

7: Micro-printer built-in.

8: DB9 RS232 communication port.

9: Professional computer software support.

10: Wide range sample thickness test is available.

11: Sled mass can be set through touch screen.

12: Static coefficient, dynamic coefficient test.

13: Overload, limit position protection.

14: One touch to start a new test.

15: Various non-standard test is available.

16: Various analysis functions.

17: Low power consumption.

18: Ethernet communication module is optional.

19: LMIS system isoptional(Laboratory Management Information System), easy to share test data.

Technical indexes

1: Load cell range: 5N, 10N,30N, 50N, 100N, 200N (Personal customization available)

2: Accuracy:  0.05%FS.

3: Max travel distance:400mm.

4: Sled mass: 200g, 500g.(Personal customization available)

5: Test speed:100mm/min.

6: Sample thickness: 30mm.(optional)

7: Power supply: AC220V 60Hz.(optional)

8: Power consumption: 21W.

9: Dimension: 650mm(L) *340mm(B)*210mm(H)

10: Net weight: 22kg.

Standards

ISO 8295, GB 10006, GB/T 17200

Configuration

Delivery: main unit, sled200g.

Optional: Professionalcomputer software, communication cable, non-standard sled, calibrationassemblies, LMIS system.
