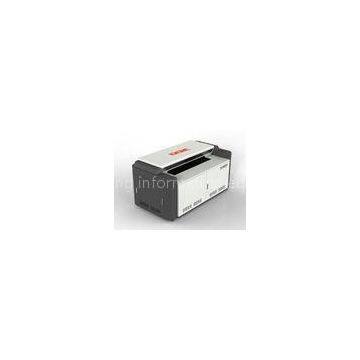

CTcP/UV platesetter 32channels 405nm laser diodes machine for prepress printing area

Brand Name	DOIE		Place of Origin	China
Model Number	CTCP 32channels platemaking prepress machine

Delivery Time:45days
Certification:ISO9001

1.Name: CTcP/UV platesetter 32channels 405nm laser diodes machine for prepress printing area

2. Application: Prepress Printing Area
3. Feature:? Totoal separate temperature control system for laser

High stability laser promise 1-2 broken? per year

Unique independent? vaccum space structure design for external drum

Big size drum can print smallest plate size 450mm*320mm

Description: DOIE prepress machine is more and more popular in the world.As one of few CTcP professional manufacturers in china, DOIE is dedicated to develop mature and perfect technology for CTcP,by Octobor 2013,DOIE successfully update the separate temperature control system for laser to control laser temperature adjustment automatically.

As everybody knows, CTcP is mature on technology and quality,the biggest advantage of DOIE machine is no bunding promotion with plate,,customer? can choose

the plate they need to save cost and energy.

Specifications:

Model	X-0322U
Light Channels	32
Output Speed(P/h)	17
P size:1030mm×800mm
29
P size:510mm×400mm
Light Source	405 nm Laser Diode
Output Resolution (dpi)	2400
Dot Reproduction	1%～99%
Register Accuracy (mm)	＜0.01
Plate Size (mm)	Max. 1160×940；Min. 450×320
Suitable Plates	Various UV-CTP(CTcP) plates
Plate Thickness (mm)	0.15~0.30
Plate Loading and Unloading	Loading:Automation(Standard Set) Unloading:Automation Vacuum Fixation
Plate Position Accuracy (mm)	0.2
Plate Balance	Automatic Balance
Data Interface	USB,1000Mbit/s
Ambient	Temperature 25℃±3℃ Humidity 20~80%(Non-condensing)
Machine Dimension (mm)	L2200×W1100×H1050
Net Weight (kg)	1500
Power Supply	≤6KW/220V±5%,50/60Hz

Applications: ?Printing house,printing industry always perchase prepress machine like ?CTP mahine used with Auto loader,bridge,processor,stacker to be? integral digital press workflow. And CTP is still the main flow prepress machine in this area.

Competitive Advantage:

1: Precise guiderail chassis. Manual entire scrape.

The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation. The guiderail precision could achieve 1-3μm/m,effectively ensure printing precision. Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role; Using import soft guide pairs and precise grinder guiderail technology, make optical platform move has little wear; the moving of platform has better smooth, precision.

2. Independent vacuum structure, effectively absorb various plates.

By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate. According to different size of plate, adjust absorptive power, could achieve best printing effect. Using negative pressure checking before printing, avoid the plate flying. Using negative pressure checking in printing, avoid the plate flying. Using negative pressure and prevent air leakage technology.

3. Continue feeding plate system, a
