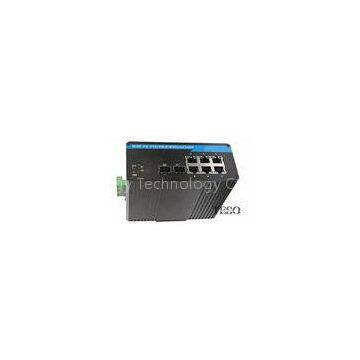

10 / 100 / 1000m Optical Ethernet Switch FCC Part 15 , POE Ethernet Switch

* 10/100/1000M DIN-Rail managed PoE Industrial Ethernet Switch
*? single mode or multi mode is optional ?
*? Redundant power input
* Installation: DIN-Rail or wall mounting
?
?

The TESO-POEG206 switches 6-port manageable Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 6.

The switches are classified as power source equipment (PSE), and when used in this way, the TESO-POEG206 switches enable centralization of the power supply and provide up to 15.4 watts of power per port.

The switches can be used to power IEEE 802.3af compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

?In addition, the built-in relay warning function alerts network engineers when power failures or port breaks occur.
?
?
Features and Benefits
?
* 8 IEEE 802.3af-compliant PoE and Ethernet combo ports
* Up to 15.4 watts at 48 VDC per PoE port
* Intelligent power consumption detection and classification
* Redundant dual VDC power inputs
* Support for OP-Ring (Recovery time<15ms) ,RSTP/STP/MSTP
* -40℃ to 85℃ operating temperature range (T models)
* Support for WEB, CLI, Telnet/serial console, Windows utility and SNMP Management
* Non-blocking store-and-forward shared-memory switch architecture
* MAC address:8K
?
?
Port Configuration
?
* RJ45 Port: Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.
* 1000Base-FX Optical Port: SFP module
* Single-mode:20, 40, 60, 80, 100,120Km,optional
* Multi-mode: 2, 5Km,optional
* Wavelength: 850nm, 1310 nm, 1550nm
* DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45
* Alarm output interface: One relay alarm output. Support power, port link and ring network alarm
* Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication
?
?
Power Input options
?
* Input Voltage: 48V DC (46~50VDC) ,Redundant power input
* Overload Current Protection
* Support dual power backup
* Support dual power alarm input
* Connection: 6 pin terminal
?
?
Environmental Limits
?
* -40℃ ~ + 80℃( Wide Temperature)
* Storage Temperature:-40℃ ~ + 85℃
* Humidity: 5% ~ 95%
?
?
Mechanical Dimension
?
* Dimensions: 61 x 120 x 140 mm
* House Protection: IP40 protection, Aluminium Alloy
* Installation: DIN-Rail or wall mounting
* Weight: 760g
?
?
Approval
?
* FCC/CE/LVD/EMC
* EMS:

o????? EN61000-4-2 (ESD),Level 3

o????? EN61000-4-3 (RS),Level 3

o????? EN61000-4-4 (EFT),Level 3

o????? EN61000-4-5 (Surge),Level 3

o????? EN61000-4-6 (CS),Level 3
???????????????????? EN61000-4-8,Level 3
* Shock: IEC 60068-2-27
* Free Fall: IEC 60068-2-32
* Vibration: IEC 60068-2-6?
?
?
Warranty
?
?5 years
?
