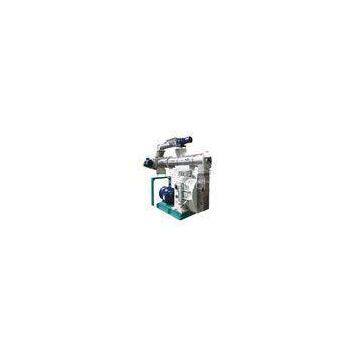

automatic lubrication livestock / wood pellet mill equipment , SZLH400 420

automatic lubrication livestock / wood pellet mill machine / equipment , SZLH400 / 420

Features:

1. SZLH400/420 High Grade Combination of Livestock and Aqua Feed Pellet Mill adopts gear directly-connecting driving for high efficiency;

2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;

4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;

5. Gearbox and driving holes’accuracy of this granulator are guaranteed by specialized casting supplier;

6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;

7. 3 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;

8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;

9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
