RJ-45 Connectors IEEE82.3AF Power Over Ethernet PoE Injector 48V 15.4W / 25W

RJ-45 Connectors IEEE82.3AF Power Over Ethernet PoE ?Injector 48V 15.4W / 25W

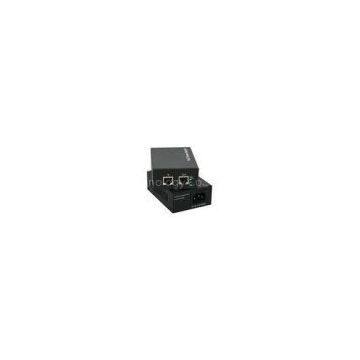

The single port Power Over Ethernet (PoE) DC Power Injector eliminates the need for a PoE enabled equipment, such as IP Camera, IP Telephones, Wireless LAN and Bluetooth Access Points, etc.. The injector is typically installed near the Ethernet hub and connected to a remote PoE device through a single Ethernet Cat 5 cable up to 100meters / 330feets . The injector can support an advanced 802.3af or nonstandard (optional) compliant device which supporting the standard PoE pin out
(Pins 4&5 Power + / Pins 7&8 Power -)

Technical Specifications:
LAN Data Rates:
--10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)

Input Power Requirements:
--Input voltage ..................... 100 VAC to 240 VAC
--Input frequency...........................47 Hz to 63 Hz

Power over Ethernet Output:
--Pin Assignment and Polarity...4/5 (V+), 7/8 (V-)
--Output Power.................please refer to ordering information

Efficiency.........................................75% min
--Short circuit protection................ auto recovery
--Over current protection................ auto recovery

Front Panel Indicators:
--Power Indicator…….DC Power Outout (Green)
--PoE Indicator…………..….PD Statues (Green)*

Environmental Conditions:
--Operating temperature ............... …0℃ to 50℃
--Cooling ................................ free air convection
--Storage temperature ............... -20℃ to +85℃
--Operating Humidity...90% max non-condensing

Mechanical Specifications:
--Case Material…………….………………..Iron
--Case Color……………………………….Black
--Net Weight………………….250g approx. / unit
--Dimensions………70(W) x 35(H) x 100 (L) (mm)

Connectors:
--AC Inlet……………………………………IEC-J-4
--LAN……………………………….Shielded RJ-45

*PoE LED Indicator description, only valid for advanced 802.3af application:

RJ-45 Connectors and Pinout:

Ordering Information:
