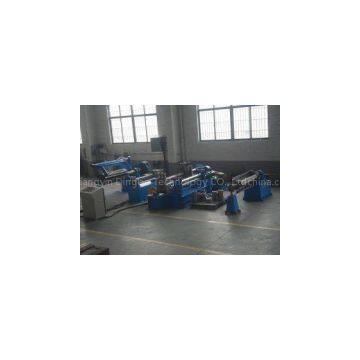

380V Semiautomatic Steel Coil Slitting Line Machine With Common Carbon Steel Sheet
- T/T L/C D/P D/A
- 7 days
You May Like
-
5.5kw Steel Glazed Tile Forming Machine With 10 - 15 m / Min Forming Speed for Steel Panel Roofs and
-
Main Power 0.85KW Hydraulic Arch Bending Machine for Corrugated Sheets
-
Roof Sheet Tile Roll Forming Machine in Wall / Roof Construction for Outdoor Decoration
-
Hydraulic Bending Machine for Crimping the Formed Corrugated Sheets With 1kw Servo Motor
-
Hydraulic Bending Machine With HRC55-60 Corrugated Punching Moulds for Roofing Sheet
-
Hydraulic Curving Machine With Line Speed 0-10m / Min for Arch Roof Panel
Product Details
| Brand Name | DB | Place of Origin | China | |
| Model Number | According to profile |
Product Description
Certification:CE
380V Semiautomatic Steel Coil Slitting Line Machine with Common Carbon Steel Sheet
Consist of the slitting line
?COIL CAR
UNCOILER?
HOLD DOWN ROLL
LEVELER
SHEAR
SIDE GUIDE?
?SLITTER?
?SCRAP WINDERS
?LOOP TABLE
?TENSION STATION
?SEPARATOR
?RECOILER
Descriptions:
Components of the 1300 semiautomatic slitting line: coil car, hydraulic decoiler, slitter, hydraulic tension station, hydraulic recoiler
Main parameters:
Size(mm):20000*6000*2000
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness(mm): 0.2-1.5
Width(mm): 1250
Coil I.D(mm): f508
Coil O.D(mm): f1500
Coil weight: 11t(max)
Slitting product:
Coil I.D: f508mm
Slitting tolerance thickness:1.0mm?.03mm(max)
Slitting burr thickness: 1.0mm=0.03mm(max)
Minimal width :12mm
Slitting number: 20(coil thickness 0.5mm)
16(coil thickness1.5mm)
Electric power: 380V/50HZ/3PH
Capacity: 100KW
Speed: 0-80m/min
Slitting type: rolling shear?
?
