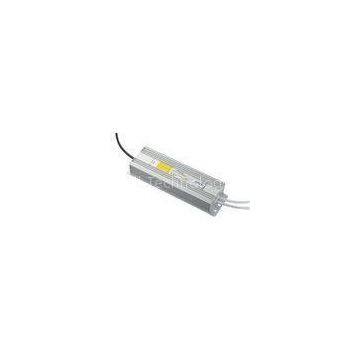

100W 24V Waterproof Led Driver , Constant Voltage Led Strip Power Supply

Input Rated Voltage?:

100Vac~240Vac

Input Frequency Range :

47Hz~63Hz

Input Inrush Current?:

1.8A max

Efficiency??:

85%(MIN)at Rated Voltage

Output :

12V 8.3A max / 24V 4.2A max

Output power?:

100W

Ripple and Noise?:

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time :

<3S? (AC:110V and full load)

Safety protection?:

over voltage?and current protection.

Leakage Current :

<5mA

Output typer :

Constant voltage

Operating Temperature :

0°C----+60°C

Storage Temperature :

-20°C----+85°C

Certificate :

CE GS TUV?UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006

Application :

For led light , led strip , led down light etc….

IP 67 CONSTANT VOLTAGE LED DRIVER

Model

Input Voltage

Output Power

Output Voltage

Output Current

Power Factor

Dimension

WTF-D12010A

100-240V

10W

12V

0.83A

0.95

58*58*23mm

WTF-D24010A

24V

0.42A

WTF-D12010A

100-240V

10W

12V

0.83A

0.95

100*32*21mm

WTF-D24010A

24V

0.42A

WTF-D12015A

100-240V

15W

12V

1.25A

0.95

120*32*21mm

WTF
