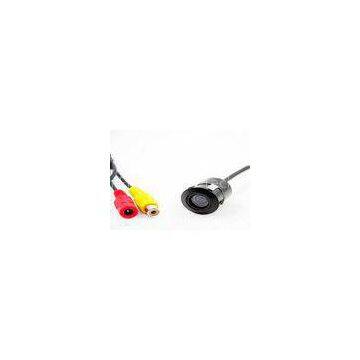

16.5mm / 18.5mm Drilling Universal Car Camera With Waterproof Nightvision , DC 12V
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
30fps 480TV Line Waterproof Toyota back up For Camry / CCD Sensor
-
Mini IP67 CMOS Universal Car Camera PAL / NTSC , Vehicle Reversing Cameras
-
HD Universal automobile / Car 170 degree backup camera Silver Color
-
Dustproof 170 degree Car Backup Reverse Camera for Toyota 2009 Prado
-
PAL / NTSC CCD Reversing Toyota Backup Camera Waterproof / PC3089 Sensor
-
Parking and Reversing 480TVL Resolution Universal Car Camera With PC 3089 / 3030 Sensor
Product Details
| Brand Name | HTJ | Place of Origin | China | |
| Model Number | HTJ-C0010 |
Product Description
Certification:CE , FCC
16.5mm?/?18.5mm?Drilling?Universal?Car?Camera?With?Waterproof?Nightvision?,?DC?12V
?
Quick Detail:
Type : 16.5mm / 18.5mm Drill Universal Car Camera
Material :?Metallic
Effective Pixels : 648 x 488 pixels
Lens Angle : 170°
Sensor : 3030/3089/7070
Resolution : 480 TV Lines
Minimum Illumination : 0.5 Lux (day) ,?0 Lux (with IR)
TV System : PAL?/ NYSC
?
Description:
?
?
|
Chipset |
PC 3089 |
PC 3030 |
PC 7070 |
PC OV7959 |
|
TV System |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
|
Sensor |
1/3“ CMOS |
1/3.7“ CMOS |
1/4“ CMOS |
1/3.6“ CMOS |
|
Effective Pixels |
962×504 Pixels |
648×488 Pixels |
648×488 Pixels |
648×488 Pixels |
|
Image |
800TVL |
480TVL |
480TVL |
480TVL |
|
Video Output |
1.0Vp-p at 75ohm |
1.0Vp-p at 75ohm |
1.0Vp-p at 75ohm |
1.0Vp-p at 75ohm |
|
Electronic Shutter |
1/60~1/100000sec |
1/60~1/100000sec |
1/60~1/100000sec |
1/60~1/100000sec |
|
Minimum Illumination |
0.5Lux |
0.6Lux |
0.5Lux |
0.6Lux |
|
Power supply |
DC 12V |
DC 12V |
DC 12V |
DC 12V |
|
Operating Temperature |
-20~+70℃ |
-20~+70℃ |
-20~+70℃ |
-20~+70℃ |
|
Storage Temperature |
-30~+85℃ |
-30~+85℃ |
-30~+85℃ |
-30~+85℃ |
|
Environmental Temperature |
90%RH |
90%RH |
90%RH |
90%RH |
|
White Balance |
Auto(2500K~9500K) |
Auto(2500K~9500K) |
Auto(2500K~9500K) |
Auto(2500K~9500K) |
|
Lens Angle |
170 degree |
170 degree |
170 degree |
170 degree |
|
Waterproof |
IP67 |
IP 67 |
IP67 |
IP67 |
Applications:??
Help Parking and Reversing
?
Fit for the All Cars
?
Connect to the display of car or add a rear view mirror display
?
Specifications :
?
|
Model No. |
HTJ-C0010 |
|
Power supply |
DC 12V |
|
Current Consumption |
|
