Home > Products > Toyota Backup Camera > Universal Dustproof Reverse Toyota Corolla Backup Camera For Vehicle DC 12V

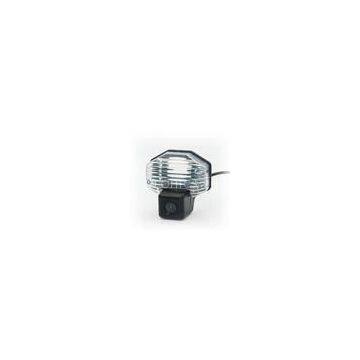

Universal Dustproof Reverse Toyota Corolla Backup Camera For Vehicle DC 12V
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
16.5mm / 18.5mm Drilling Universal Car Camera With Waterproof Nightvision , DC 12V
-
30fps 480TV Line Waterproof Toyota back up For Camry / CCD Sensor
-
Mini IP67 CMOS Universal Car Camera PAL / NTSC , Vehicle Reversing Cameras
-
HD Universal automobile / Car 170 degree backup camera Silver Color
-
Dustproof 170 degree Car Backup Reverse Camera for Toyota 2009 Prado
-
PAL / NTSC CCD Reversing Toyota Backup Camera Waterproof / PC3089 Sensor
Product Details
| Brand Name | HTJ | Place of Origin | China | |
| Model Number | Toyota Corolla |
Product Description
Certification:CE, FCC
Universal?Dustproof?Reverse?Toyota?Corolla?Backup?Camera?For?Vehicle?DC?12V
Product Quick Details
?Chipset : 1089 / 3030 / ?7070 / 7959
?Model Number : Toyota Corolla
?Type: Toyota Backup Camera
?Resolution (TV Lines) : 480TV Lines
?Effective Pixels :?648 x 488 pixels
?Lens: f = 2.5 mm, F = 2.0
Lens Angle : 170 deg.
Description
| Model Number | Toyota Corolla |
| TV System | 648 x 488 pixels |
| Sensing Area | 3.6mm x 2.7mm |
| ?Lens | ?f = 2.5 mm, F = 2.0 |
| Electronic Shutter | 1/50(PAL)/1/60(NTSC)～1/100,000 Seconds |
| S/N Ratio | Better than 48 dB |
| Video Output | 1.0vp-p, 75 Ohm |
| Image Features | Level |
| Scanning?System | 525lines , 60 fields/Sec ?(2:1 Interlace ?) |
| Features |
HD , Night Vision , Waterproof , Dustproof , CCD , With LED |
1 .?Image quality ?assurance temperature :?-20-+70 ℃
2 .?Connection :?RCA / 4 PIN DIN
3 .?Anti-vibration (Weight ) : 10 g
4 .?Field Angle :?Level : 105° ,?Vertical :90° ,?Cater-corner :170°
Specification
| ?Effective Pixels | 648 * 488 Pixels |
| ?Image Sensor | 1/4“ CMOS |
| ?Chipset | PC7070 |
| Sync.?System | Internal |
| ?Frequency | 30 fps |
| Minimum?Illumination? | 0.3 Lux (day), 0 Lux (with IR) |
| Operating?Temperature | -20°C~+70°C, ?( RH?95%?MAX ) |
| Storage?Temperature | -30°C~85°C, ( RH?95%?MAX. ) |
| White Balance / BLC / AGC | Auto |
| Working Current | 150mA |
| Power?Supply (Voltage ) | DC?12?V |
| Sensing Area | 3.6 mm * 2.7 mm |
| ?Working Voltage Range | 12V~26VDC |
| Vision Signal | 1.0Vp-p at 75ohm |
| Gamma Consumption | 0.45 |
Applications
Fit for Toyota Corolla
Driving safety assistant system
Help Parking and Reversing
Competitive advantages
Shockproof
HD
CCD Sensor
LED
Night Vision
IP 67
Dustproof
competitive price
?
